| Quantity: | |
|---|---|
GL41W
RST/OEM

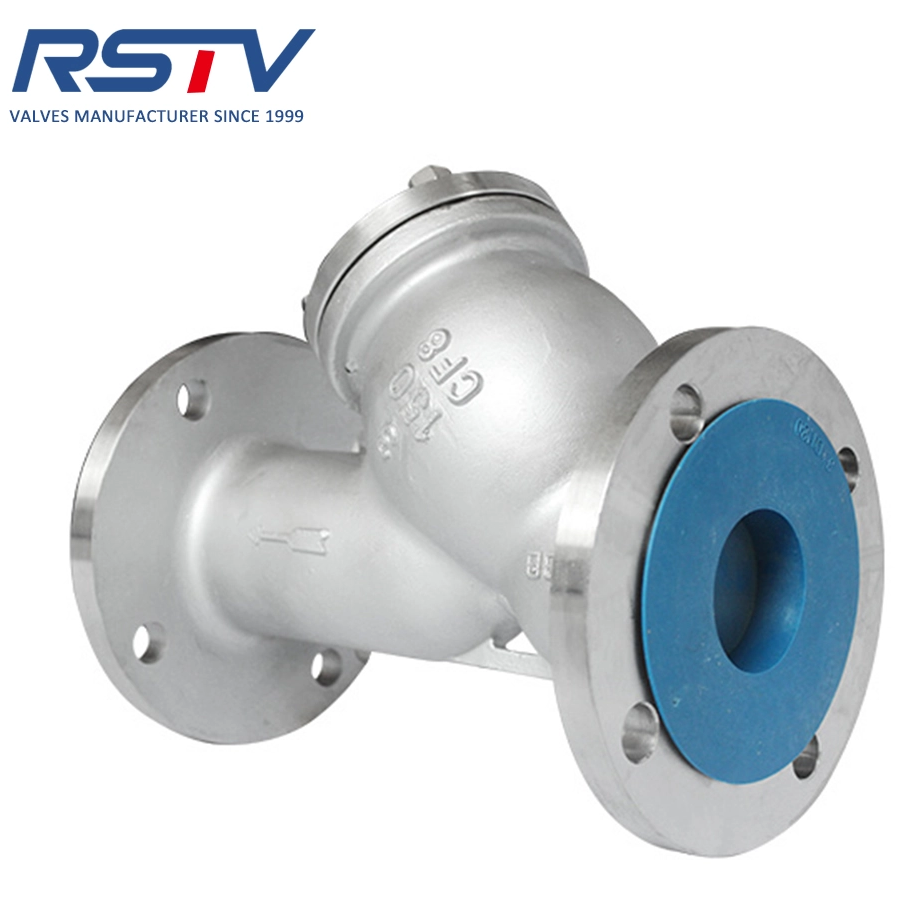

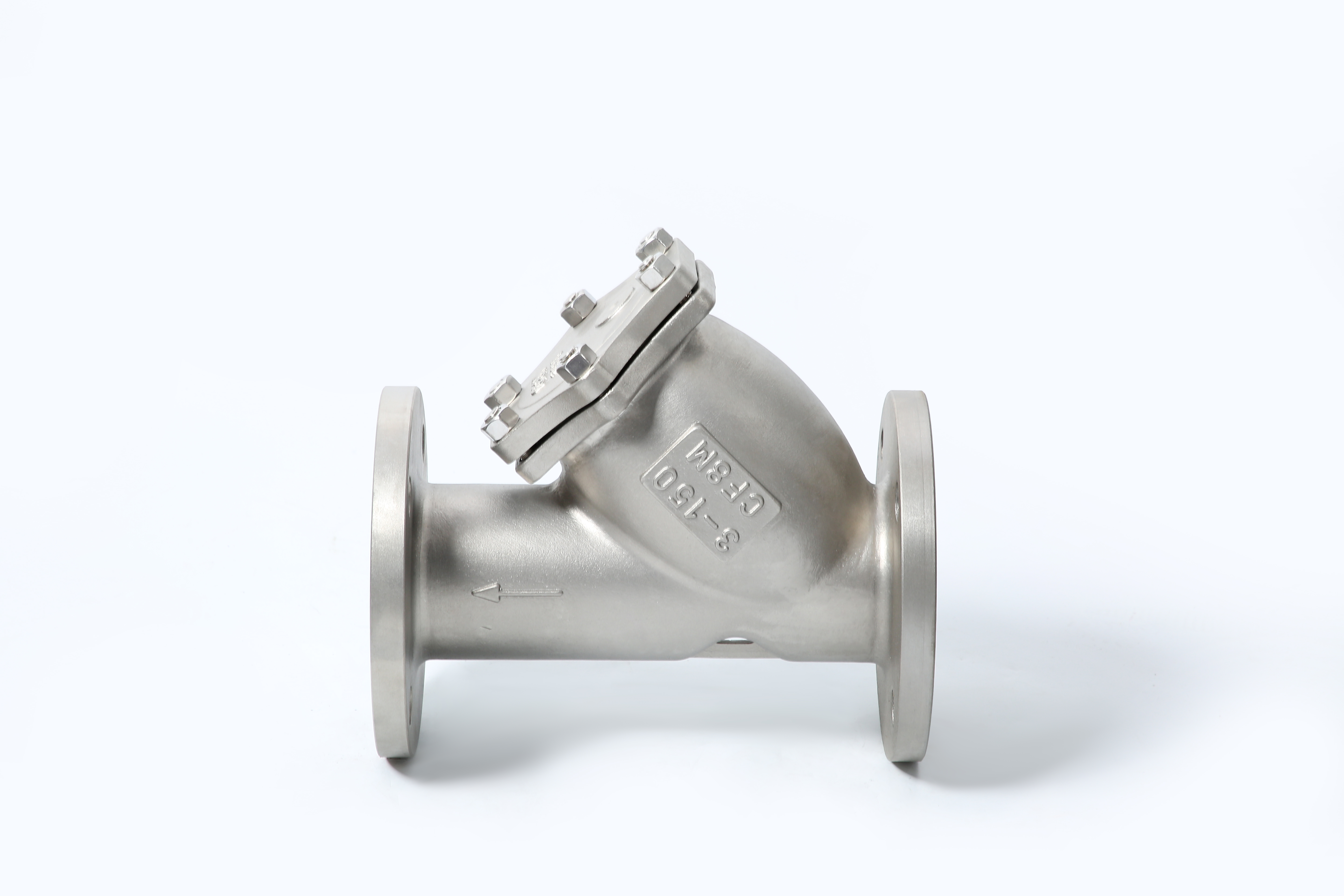

A flanged Y strainer is a device used in pipelines to filter out debris and protect downstream equipment such as pumps, valves, and meters from potential damage caused by particulates. The "Y" in its name refers to the shape of the strainer body, which resembles the letter "Y".
Features
--Pressure rating: ANSI 150LB/300LB/600LB
JIS 10K/20K, PN16/25,etc
--Material: CF8M/CF8/CF3M/CF3/
WCB/LCB/A105/F304/F316/LF2
--Size range: 1/2"-24"(DN15-DN600)
--Flange Connection: The strainer has flanged ends for easy connection to the piping system. Flanges are usually made according to standardized dimensions (e.g., ANSI, ASME,DIN).
--Screen: 40mesh or as requirement
Technical Specification
1. Design and manufacture refer to ASME B16.34
2. Face-to-face to MFG Standard
3. Flanged ends refer to ASME B16.5
4. Inspection and test refer to API 598
Testing
Testing is a must before delivery.
Ensure the sealing function is what we should do.
--Pressure Test
--Dimension Test
--PMI Test
Transportation
Every valve will be packed into plywood cases to avoid of the collisons during transportation.
Deliver by sea, by air, by railway, by express are all available.
· Water and wastewater treatment
· Chemical processing
· Petrochemical and oil refineries
· Power plants
· Food and beverage industry
· HVAC systems
· Protects downstream equipment such as pumps, valves, and meters from damage caused by debris.
· Helps maintain efficient flow and system performance.
· Reduces maintenance costs and downtime by preventing clogs and blockages.
ANSI 150LB STAINLESS STEEL FLANGE Y TYPE STRAINER are essential components in many fluid handling systems, providing crucial protection and ensuring the longevity and efficiency of the entire pipeline network.
