J41H
RST

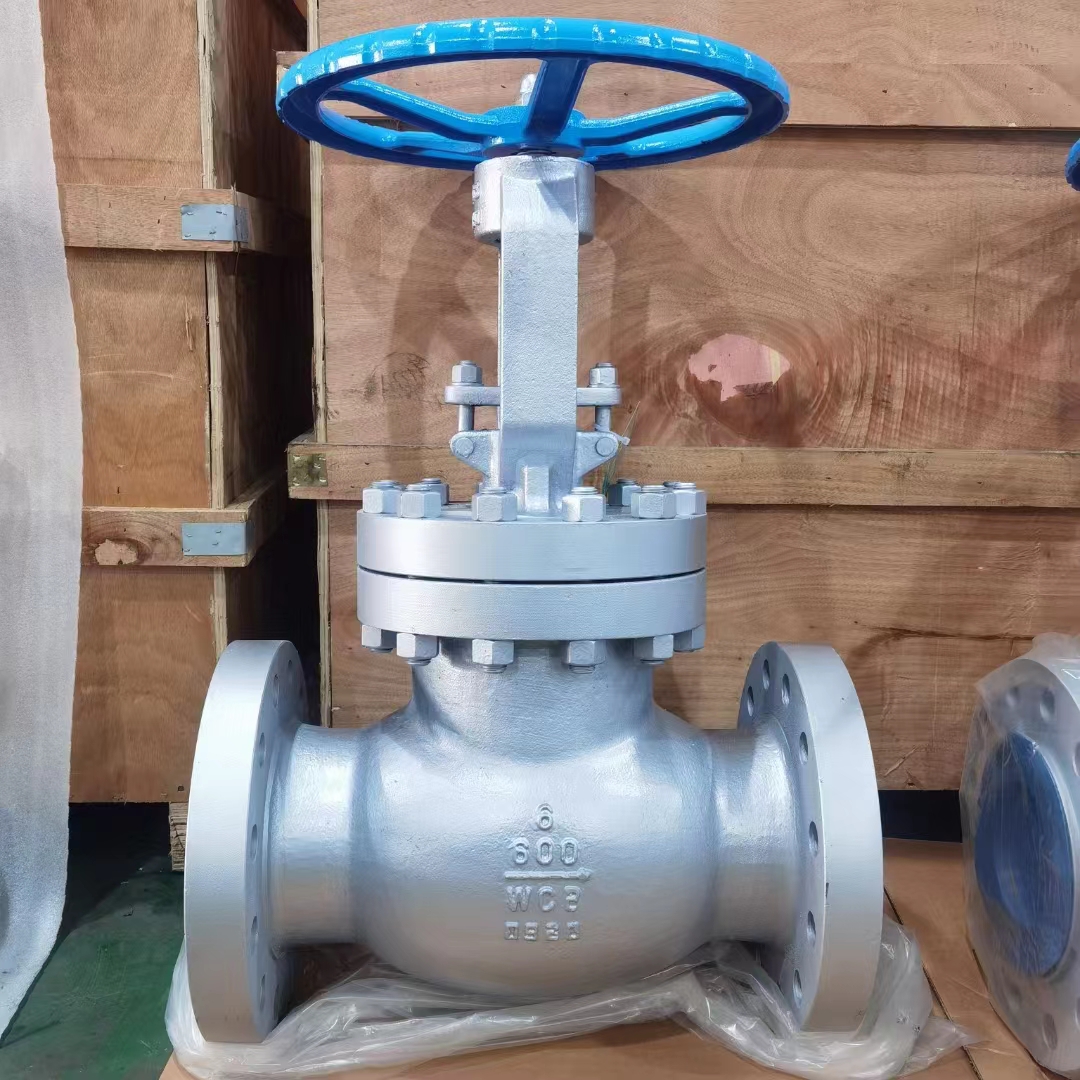

An API flanged globe valve is a type of industrial valve designed for regulating flow within pipelines.
Unlike ball valves, which use a spherical disc to control flow, globe valves employ a movable plug (or disc) that moves perpendicular to the flow path to regulate fluid flow. This design allows for precise throttling and flow control, making globe valves suitable for applications requiring accurate flow regulation or shutoff.
Features
-Outside Screw and Yoke (OS&Y) - Rising Stem Design
-Size Range: NPS 1/2"-24" (DN 15-600)
-Pressure Class: ASME Class 150/ Class 300/ Class 600
-Body Materials: Cast Steel, Cast Stainless Steel
CF8M/CF8/CF3M/LCB,ETC
-Temp.:-20-425°C
Material
| PARTS NO. | MATERIAL | ||
| BODY | WCB | CF8 | CF8M |
| BONNET | WCB | CF8 | CF8M |
| DISC | WCB+13CR/STL | 304/STL | 316/STL |
| STEM | 13CR | 304 | 316 |
| GASKET | SS304+GASKET | ||
Standards
-Design:ASME B16.34, BS1873,API623
-Flange Dimension: ASME B16.5
-Face to Face: ASME B16.10
- Inspection&Testing: API600/API598
Testing
Testing is a must before delivery.
Ensure the sealing function is what we should do.
Pressure Test
PMI Test
Dimension Check
.
The valve is designed and manufactured in accordance with the specifications outlined by the American Petroleum Institute (API). These standards ensure that the valve meets rigorous quality and performance requirements, particularly for use in demanding environments like oil and gas extraction, refining, and petrochemical processing.
Overall, an API flange globe valve is a reliable and versatile solution for controlling flow in industrial pipelines, offering precise flow regulation and robust performance in demanding operating conditions.
