GL11W
RST

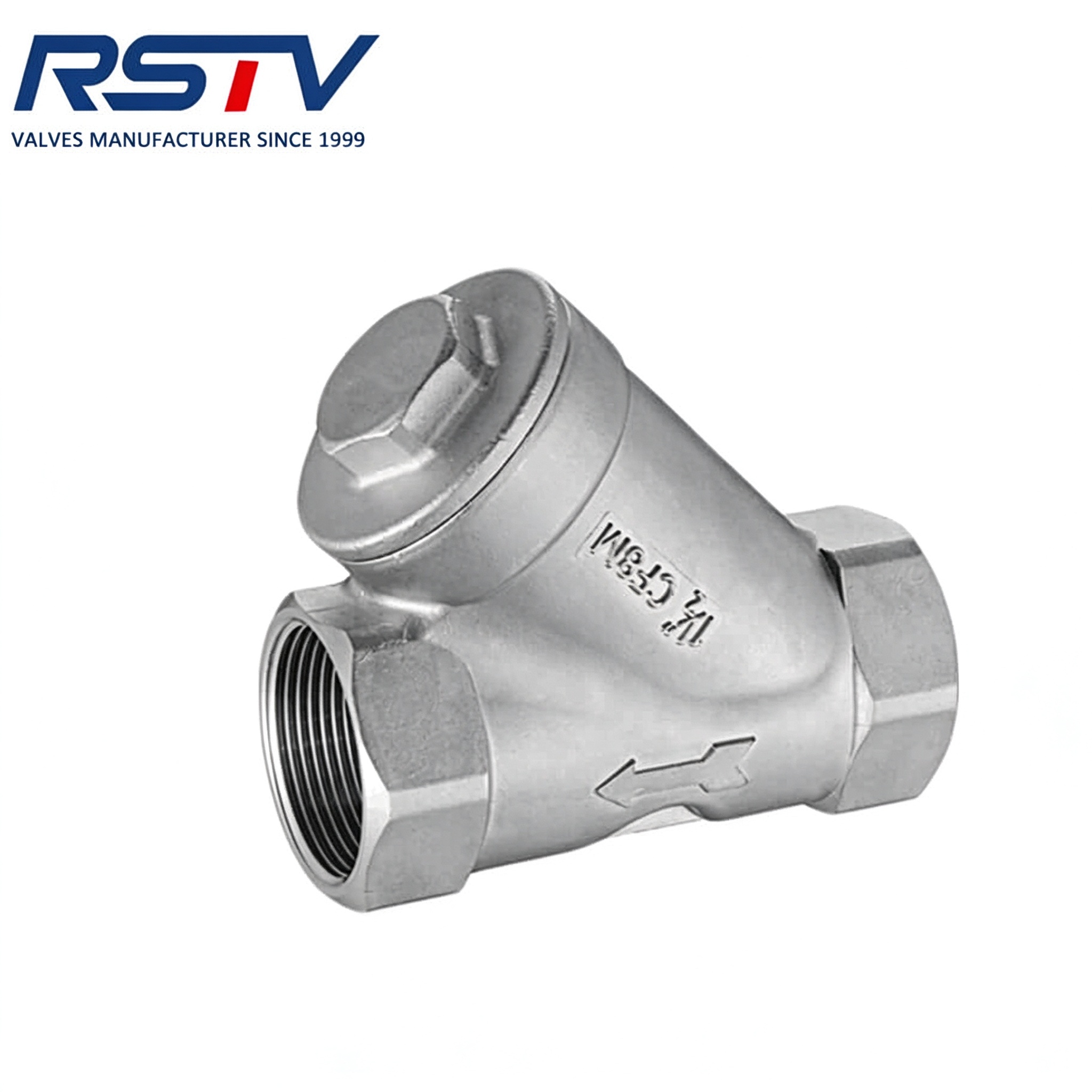

A stainless steel threaded end y strainer is an essential component in various industries. Its primary function is to remove unwanted particles and debris from fluid systems, ensuring smooth and uninterrupted operation. With its threaded end design, it can easily be installed and connected to pipelines or equipment. The stainless steel construction provides durability and resistance to corrosion, making it suitable for use in harsh environments. This type of strainer is commonly used in applications such as water treatment, oil refineries, chemical processing plants, and many more. Its efficiency in filtering out impurities ensures the quality and longevity of the entire system.
Features
---Size: 1/4"-4" (DN8-DN100)
---Material: CF8M(SS316)/CF8(SS304)/WCB
---800WOG
---Temp:-20-150°C
---Thread end:ASME B1.20.1 (NPT)
BS21/DIN2999/ISO288-1/ISO7-1
---Socket Weld end Available
Material
| No. | Parts | Material | ||
| 1 | Cap | CF8M | CF8 | WCB |
| 2 | Gasket | PTFE | ||
| 3 | Screen | 316 | 304 | 304 |
| 4 | Body | CF8M | CF8 | WCB |
Inspection
--Every strainer will be done the pressure test before test.
--PMI test
--Dimension Test
Package&Delivery
--Process: Plastic bag, thread cover, inner paper box, carton box, plywood cases
--By sea, by air, express
With its threaded end design, the stainless steel y strainer can be easily installed and connected to pipelines or equipment. Its durable construction and resistance to corrosion make it suitable for use in even the harshest environments. This type of strainer is commonly found in water treatment facilities, oil refineries, chemical processing plants, and various other applications. Its efficiency in filtering out impurities ensures the overall quality and longevity of the entire system. The y strainer comes in various sizes ranging from 1/4" to 4" (DN8-DN100) and is made from high-quality materials such as CF8M (SS316), CF8 (SS304), or WCB. With a pressure rating of 800WOG and a temperature range of -20 to 150°C, it can withstand demanding conditions. The threaded end is designed to meet standards such as ASME B1.20.1 (NPT), BS21, DIN2999, ISO288-1, and ISO7-1. Additionally, a socket weld end option is also available. Before leaving the factory, each strainer undergoes rigorous testing, including pressure tests, PMI tests, and dimension tests. For packaging and delivery, the strainer is carefully packed in plastic bags, with thread covers, inner paper boxes, carton boxes, or plywood cases, depending on the requirements. It can be shipped by sea, air, or express delivery. The stainless steel y strainer is a reliable and efficient solution for maintaining the purity and smooth operation of various systems.
A stainless steel threaded end y strainer is an essential component in various industries. Its primary function is to remove unwanted particles and debris from fluid systems, ensuring smooth and uninterrupted operation. With its threaded end design, it can easily be installed and connected to pipelines or equipment. The stainless steel construction provides durability and resistance to corrosion, making it suitable for use in harsh environments. This type of strainer is commonly used in applications such as water treatment, oil refineries, chemical processing plants, and many more. Its efficiency in filtering out impurities ensures the quality and longevity of the entire system.
Features
---Size: 1/4"-4" (DN8-DN100)
---Material: CF8M(SS316)/CF8(SS304)/WCB
---800WOG
---Temp:-20-150°C
---Thread end:ASME B1.20.1 (NPT)
BS21/DIN2999/ISO288-1/ISO7-1
---Socket Weld end Available
Material
| No. | Parts | Material | ||
| 1 | Cap | CF8M | CF8 | WCB |
| 2 | Gasket | PTFE | ||
| 3 | Screen | 316 | 304 | 304 |
| 4 | Body | CF8M | CF8 | WCB |
Inspection
--Every strainer will be done the pressure test before test.
--PMI test
--Dimension Test
Package&Delivery
--Process: Plastic bag, thread cover, inner paper box, carton box, plywood cases
--By sea, by air, express
With its threaded end design, the stainless steel y strainer can be easily installed and connected to pipelines or equipment. Its durable construction and resistance to corrosion make it suitable for use in even the harshest environments. This type of strainer is commonly found in water treatment facilities, oil refineries, chemical processing plants, and various other applications. Its efficiency in filtering out impurities ensures the overall quality and longevity of the entire system. The y strainer comes in various sizes ranging from 1/4" to 4" (DN8-DN100) and is made from high-quality materials such as CF8M (SS316), CF8 (SS304), or WCB. With a pressure rating of 800WOG and a temperature range of -20 to 150°C, it can withstand demanding conditions. The threaded end is designed to meet standards such as ASME B1.20.1 (NPT), BS21, DIN2999, ISO288-1, and ISO7-1. Additionally, a socket weld end option is also available. Before leaving the factory, each strainer undergoes rigorous testing, including pressure tests, PMI tests, and dimension tests. For packaging and delivery, the strainer is carefully packed in plastic bags, with thread covers, inner paper boxes, carton boxes, or plywood cases, depending on the requirements. It can be shipped by sea, air, or express delivery. The stainless steel y strainer is a reliable and efficient solution for maintaining the purity and smooth operation of various systems.
