GL41W
RST/OEM

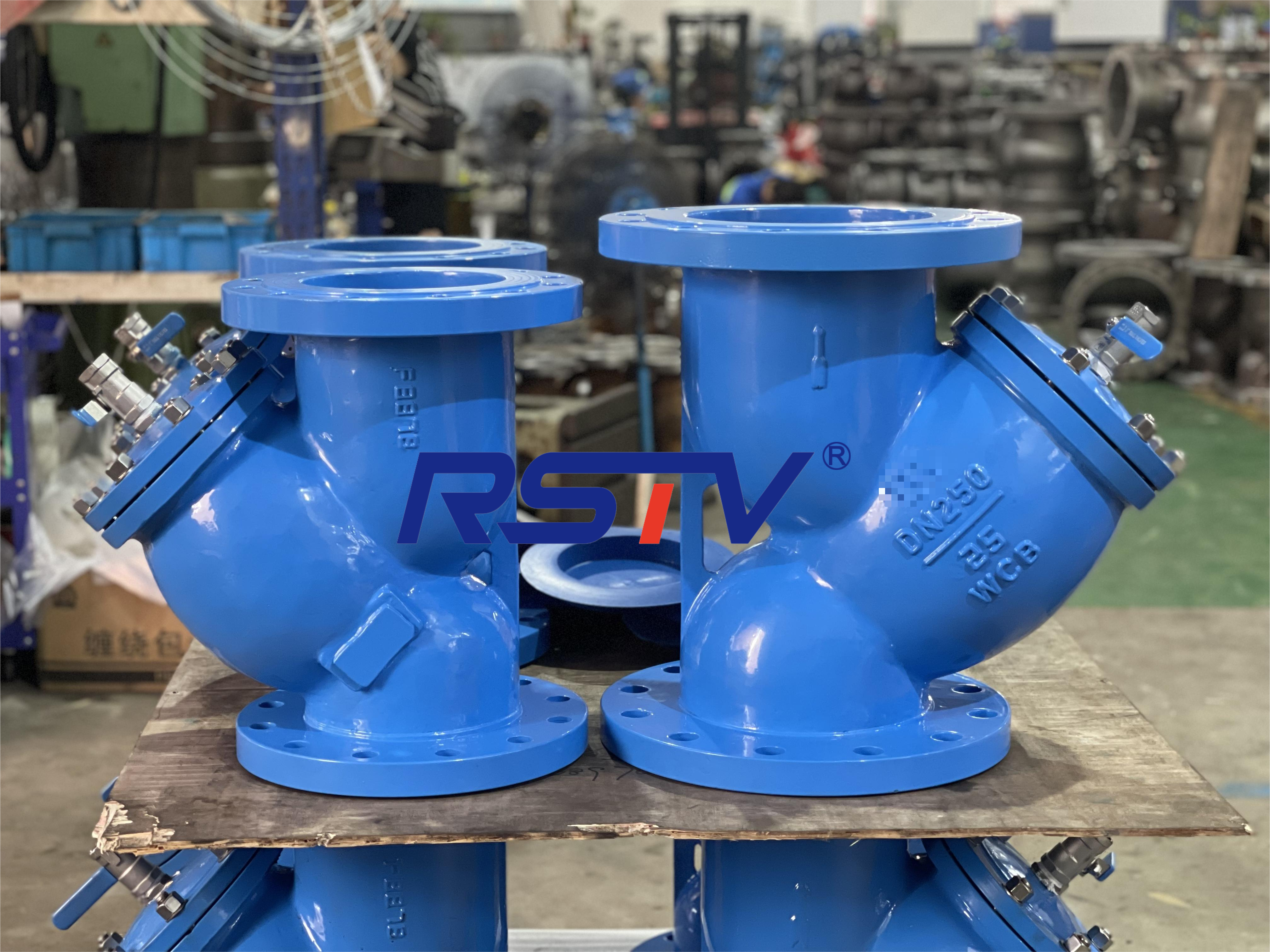

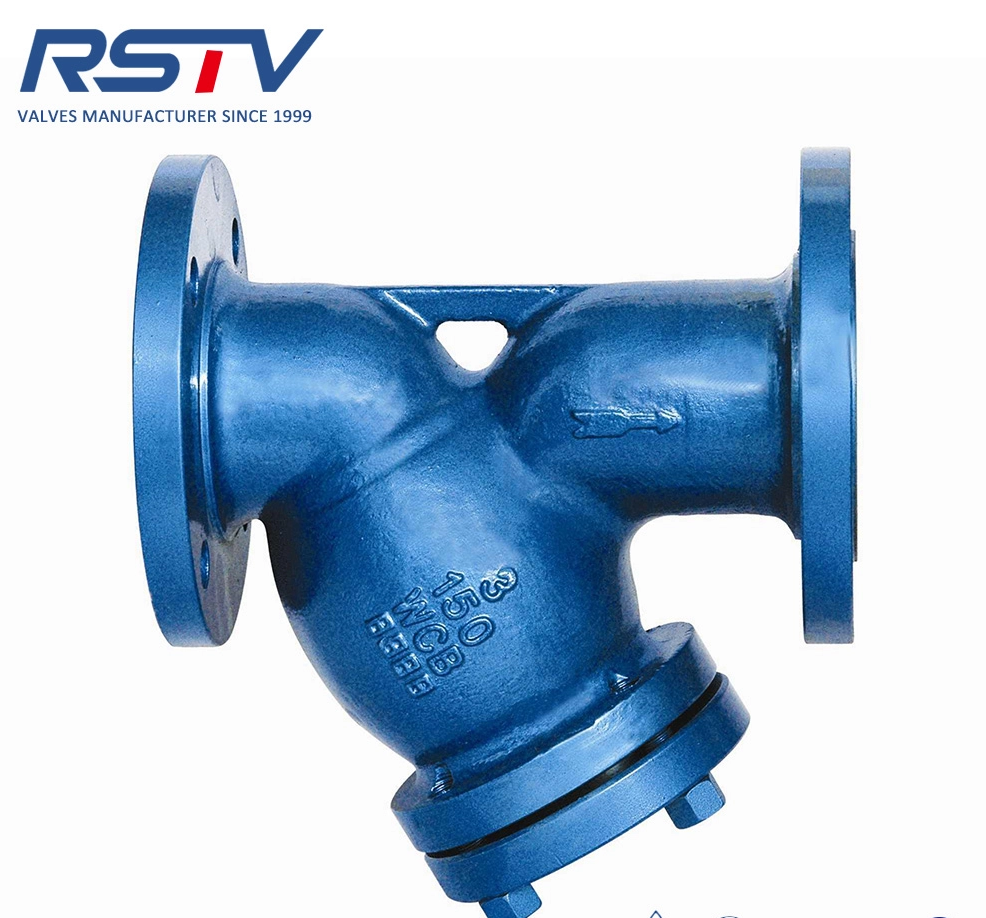

A 150 lb flange Y strainer is a type of pipeline filter used in various industrial applications to remove debris and contaminants from the flow of liquids and gases. The "150 lb" designation refers to the pressure rating of the flange connection, indicating that the strainer is designed to operate at a maximum pressure of 150 pounds per square inch (psi). The "Y strainer" name comes from its shape, which resembles the letter "Y," and it typically has a mesh or perforated screen inside to catch particles.
The robust metallic finish of the WCB carbon steel body provides immediate tactile assurance of its durability, while the precision-machined flange faces ensure a tight, leak-proof seal upon installation. By intercepting solid debris, scale, and particulate matter, this industrial-grade unit prevents premature wear and potential blockages in downstream pumps, meters, and control valves, thereby safeguarding the entire fluid handling infrastructure.
--Pressure rating: ANSI 150LB/300LB/600LB JIS 10K/20K, PN16/25,etc. Engineered to maintain structural integrity under demanding pressure fluctuations.
--Material: CF8M/CF8/CF3M/CF3/ WCB/LCB/A105/F304/F316/LF2. The heavy-duty cast construction provides excellent resistance to mechanical shock.
--Size range: 1/2"-24"(DN15-DN600). Scalable solutions for both compact utility lines and massive main headers.
--Flange Connection: The strainer has flanged ends for easy connection to the piping system. Flanges are usually made according to standardized dimensions (e.g., ANSI, ASME,DIN).
--Screen: 40mesh or as requirement. Customizable filtration precision to capture specific particulate sizes.
--Extreme Conditions Adaptability: Supports a broad temperature range from -29°C to 425°C, with optional PTFE or flexible graphite sealing materials to handle corrosive media.
1. Design and manufacture refer to ASME B16.34. This ensures strict adherence to wall thickness and pressure-temperature ratings.
2. Face-to-face to MFG Standard, allowing for predictable spatial planning during pipeline construction.
3. Flanged ends refer to ASME B16.5, guaranteeing compatibility with existing mating flanges and gaskets.
4. Inspection and test refer to API 598, confirming zero leakage and operational readiness.
5. Safety Design: Fully compliant with API 607 fire-safe standards and features an anti-static structure, crucial for flammable and explosive environments.
Testing
Testing is a must before delivery. Backed by ISO, API, and SGS international certification systems, every unit undergoes rigorous evaluation.
Ensure the sealing function is what we should do.
--Pressure Test: Conducted strictly under API 598 protocols to verify shell strength and seat tightness under maximum rated loads.
--Dimension Test: Precision measurements confirm exact face-to-face and flange dimensions for trouble-free installation.
--PMI Test: Positive Material Identification guarantees the exact chemical composition of the WCB steel, ensuring 100% qualified factory output.
Transportation
Every valve will be packed into plywood cases to avoid of the collisons during transportation. We utilize export-grade, fumigation-free thickened plywood boxes designed to absorb shocks and vibrations during transit.
Deliver by sea, by air, by railway, by express are all available. Our logistics network supports global multi-modal transport, ensuring your industrial components arrive intact and on schedule, regardless of the destination.
The robust construction and fire-safe design make this strainer indispensable across multiple demanding sectors:
Water and wastewater treatment: Filtering out organic debris and mineral scale to protect municipal pumping stations.
Chemical processing: Handling corrosive fluids safely, supported by appropriate sealing materials like PTFE.
Petrochemical and oil refineries: Essential for flammable pipelines where API 607 fire-safe and anti-static properties are mandatory.
Power plants: Protecting boiler feed pumps and cooling water systems from particulate damage.
Food and beverage industry: Maintaining fluid purity in bulk transfer lines.
HVAC systems: Keeping chiller and boiler loops free of damaging sediment.
Effective Filtration: Provides reliable protection for downstream equipment by effectively removing debris. The precision mesh intercepts particles before they can degrade system efficiency.
Versatility: Suitable for a wide range of fluids, including water, oil, gases, and chemicals. The broad temperature resilience (-29°C to 425°C) ensures stable operation across varying thermal cycles.
Maintenance Convenience: The design allows for easy removal and cleaning of the strainer screen, minimizing downtime. Featuring a user-friendly quick-release structure, maintenance personnel can easily extract, flush, or replace the internal screen without needing to detach the entire valve body from the pipeline system.
Customization & Supply Chain: We offer deep customization for screen mesh (40-mesh and above) and valve body materials to match specific engineering requirements. Combined with flexible payment terms and efficient lead times, we cater precisely to individualized project demands.
