Q41F
RST

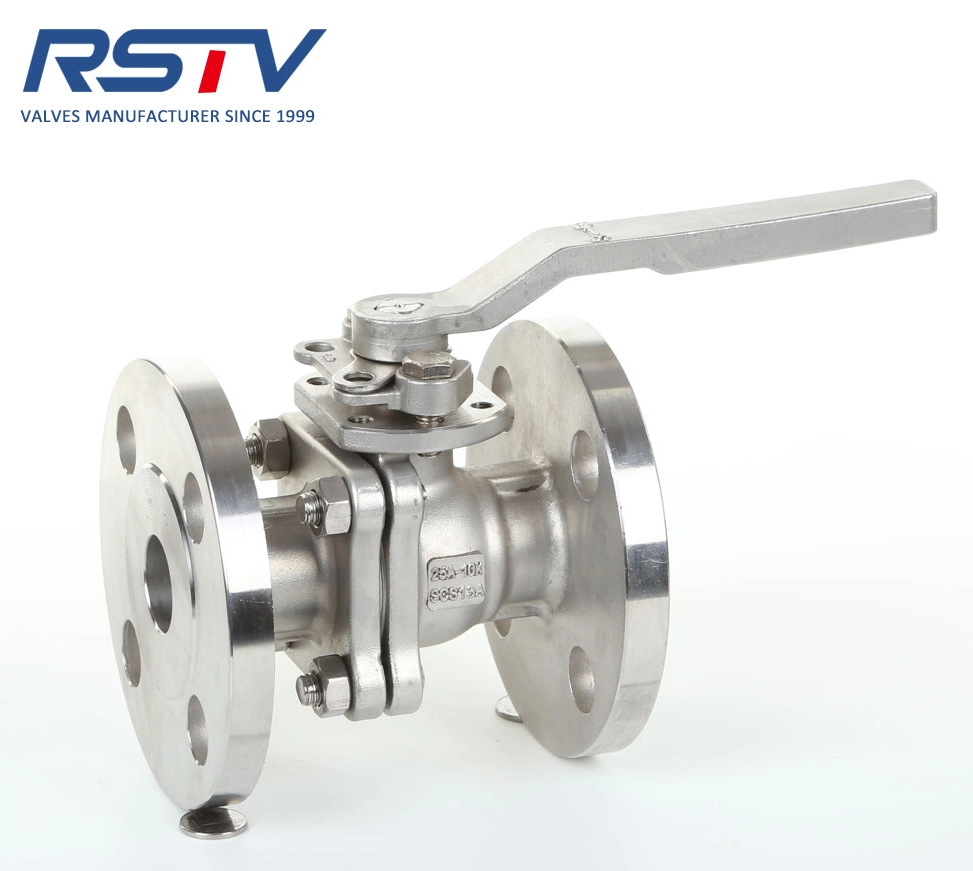

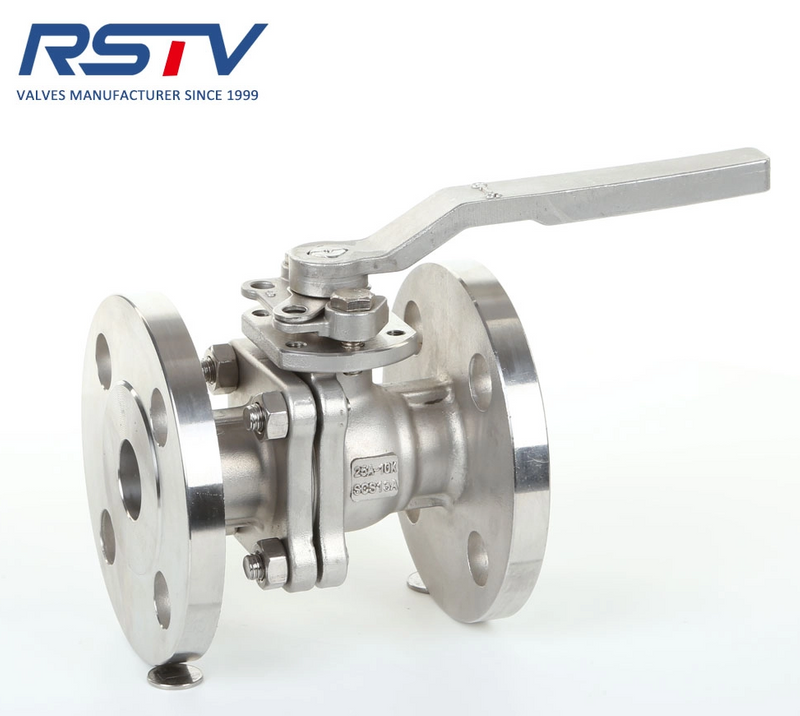

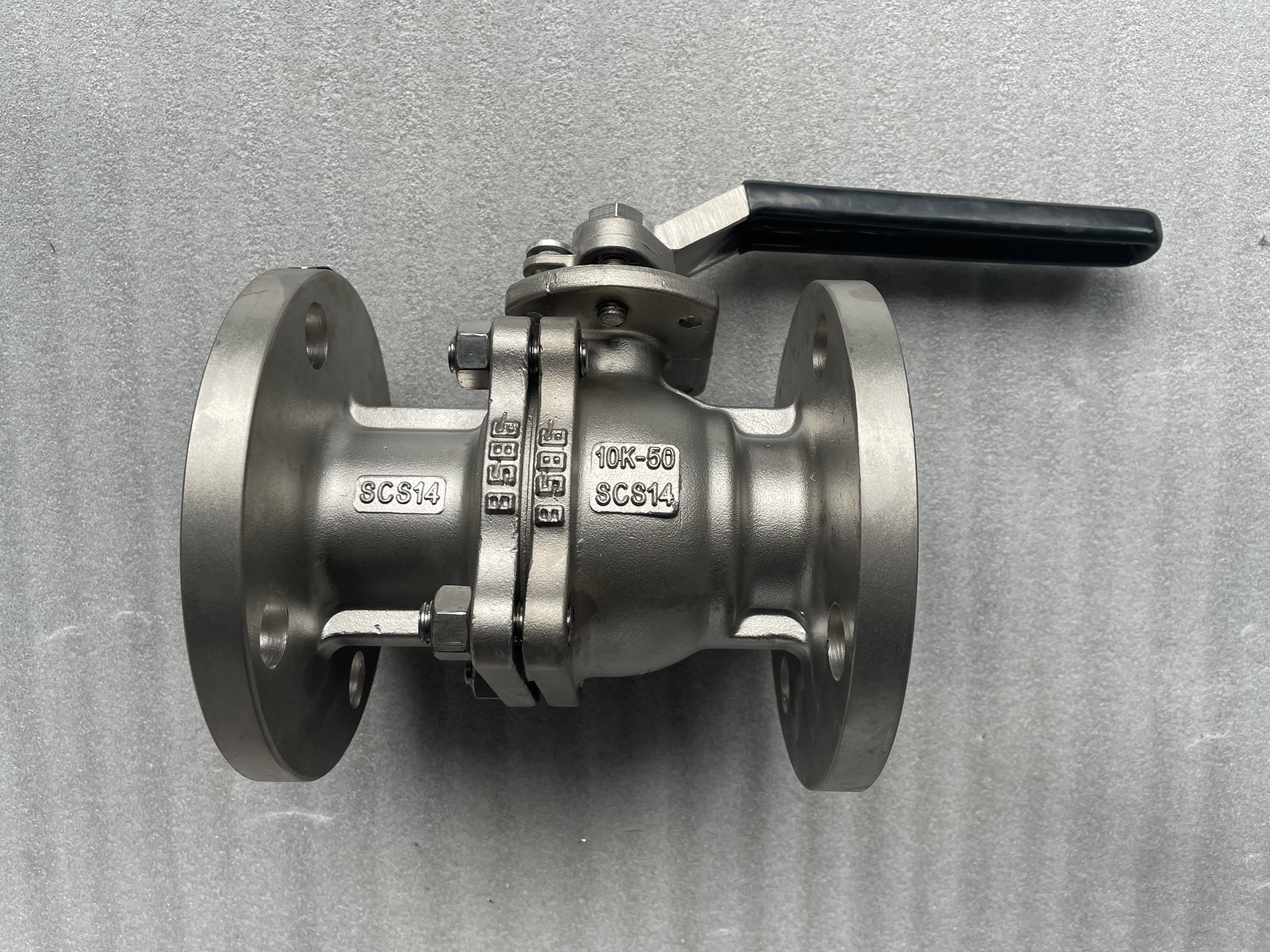

JIS stands for Japanese Industrial Standards, and the 10K refers to the pressure rating, specifically 10 kilograms per square centimeter. Flange ball valves are commonly used in industrial applications for controlling the flow of liquids or gases. The ball valve design is characterized by a spherical disc (the ball) inside the valve body. When the valve is open, the ball allows fluid to flow through, and when closed, it forms a tight seal to stop the flow.
A
FEATURES
---1. Full Port
---2.Size: 1/2"-8", Floating type
---3.W.P: JIS10K/JIS20K
---4.Blow-Out Proof Stem
---5.Material: SCS13/SCS14/SCS16A/WCB,etc
---6. Anti- Static Device (Option)
---7. Fire Safe
---8. Operation: Manual/ Pneumatic/Electric
TECHNICAL SPECIFICATIONS
---1.Design and manufacture refer to JIS B2071
---2. Face-to-face:JIS B2002
---3. Flanged ends: JIS B2220
---4. Inspection and test refer to JIS B2003
CNC MACHINING
CNC High precision machining to make sure to accuracy of the dimension.
TESTING
100% Test according to the standards before delivery.
PMI Test.
Dimension Test
A ball valve is characterized by a spherical disc (the ball) inside the valve body. When the valve is open, the ball allows fluid to flow through, and when closed, it forms a tight seal to stop the flow. These features make ball valves an essential component in various industries. The design and manufacture of ball valves adhere to strict standards such as JIS B2071, ensuring reliability and performance. Additionally, the use of materials like SCS13, SCS14, SCS16A, and WCB guarantees durability and efficiency. With options for manual, pneumatic, or electric operation, ball valves offer versatility and functionality for different applications.
When selecting a JIS 10K flange ball valve, it's important to consider factors such as the type of fluid, temperature, pressure, and the specific requirements of the application to ensure proper functionality andlongevity. Additionally, adherence to installation and maintenance guidelines is crucial for optimal performance.
JIS stands for Japanese Industrial Standards, and the 10K refers to the pressure rating, specifically 10 kilograms per square centimeter. Flange ball valves are commonly used in industrial applications for controlling the flow of liquids or gases. The ball valve design is characterized by a spherical disc (the ball) inside the valve body. When the valve is open, the ball allows fluid to flow through, and when closed, it forms a tight seal to stop the flow.
A
FEATURES
---1. Full Port
---2.Size: 1/2"-8", Floating type
---3.W.P: JIS10K/JIS20K
---4.Blow-Out Proof Stem
---5.Material: SCS13/SCS14/SCS16A/WCB,etc
---6. Anti- Static Device (Option)
---7. Fire Safe
---8. Operation: Manual/ Pneumatic/Electric
TECHNICAL SPECIFICATIONS
---1.Design and manufacture refer to JIS B2071
---2. Face-to-face:JIS B2002
---3. Flanged ends: JIS B2220
---4. Inspection and test refer to JIS B2003
CNC MACHINING
CNC High precision machining to make sure to accuracy of the dimension.
TESTING
100% Test according to the standards before delivery.
PMI Test.
Dimension Test
A ball valve is characterized by a spherical disc (the ball) inside the valve body. When the valve is open, the ball allows fluid to flow through, and when closed, it forms a tight seal to stop the flow. These features make ball valves an essential component in various industries. The design and manufacture of ball valves adhere to strict standards such as JIS B2071, ensuring reliability and performance. Additionally, the use of materials like SCS13, SCS14, SCS16A, and WCB guarantees durability and efficiency. With options for manual, pneumatic, or electric operation, ball valves offer versatility and functionality for different applications.
When selecting a JIS 10K flange ball valve, it's important to consider factors such as the type of fluid, temperature, pressure, and the specific requirements of the application to ensure proper functionality andlongevity. Additionally, adherence to installation and maintenance guidelines is crucial for optimal performance.
