Selecting the right valve dimensions goes far beyond simply matching pipe sizes. It is a fundamental engineering calculation directly impacting system efficiency, safety, and equipment lifespan. Relying on guesswork or blindly matching line size often yields poor results. It frequently leads to restricted flow, which triggers destructive pressure drops across your piping network. Conversely, overestimating capacity creates unnecessarily large initial expenditures. Proper evaluation bridges the gap between theoretical process requirements and real-world mechanical reliability.
This guide breaks down the standard engineering framework for sizing a ball valve. We will show you how to calculate precise flow capacity requirements for your specific media. Ultimately, you will learn how to properly evaluate manufacturer specifications and confidently shortlist the right solution for your infrastructure.
Matching a valve to line size is a common error; sizing must be based on the required Flow Coefficient (Cv or Kv) dictated by your system's flow rate and acceptable pressure drop.
Undersizing causes cavitation and energy loss, while oversizing leads to poor control and unnecessary procurement costs.
The phase of the media (liquid, gas, or steam) fundamentally changes the calculation parameters, particularly regarding specific gravity and compressibility.
Once the required Cv is calculated, it should dictate not only the valve size but also influence the connection type—whether evaluating a flange end ball valve for scale or a stainless steel wafer ball valve for tight spatial footprints.
Engineers often face a critical gap between theoretical process requirements and real-world mechanical performance. Proper sizing bridges this divide. You cannot simply look at a two-inch pipe and assume a two-inch valve will perform optimally under all conditions. Fluid dynamics introduce complex variables. Ignoring them creates immediate operational hurdles.
When you select a valve with insufficient flow capacity, you create an artificial bottleneck. This bottleneck forces the fluid velocity to spike as it passes through the restricted opening. High velocity directly causes excessive pressure drop ($\Delta$P) across the assembly. You immediately lose downstream capacity. The process pumps must work harder, consuming more energy to push the required fluid volume.
More dangerously, extreme pressure drops trigger flashing and cavitation in liquid systems. Cavitation occurs when localized pressure falls below the fluid’s vapor pressure. Voids or bubbles form in the liquid. As pressure recovers downstream, these bubbles collapse violently. The resulting micro-jets rip metal away from internal components. Cavitation will destroy a brand-new valve within weeks, leading to catastrophic system failure.
Many facilities oversize valves under the false assumption of building in safety margins. This approach incurs higher initial procurement and installation costs. Heavier, larger valves require sturdier piping supports and larger actuation units. If you use an oversized valve for basic throttling, it will operate too close to the fully closed position. Fluid squeezing through this tiny gap accelerates seat wear. It also causes erratic flow control, known as "hunting," where the system constantly overcorrects.
You achieve successful sizing by identifying a configuration where your calculated system flow coefficient fits comfortably within 70% to 80% of the manufacturer’s rated maximum capacity. This target window provides a safe operational margin. It handles unexpected flow surges without pushing the equipment into destructive operating zones. It also keeps the valve open enough to prevent premature seat degradation.
To accurately size your equipment, you must utilize standardized industry metrics. These metrics quantify how much fluid can pass through a restriction under specific conditions. They remove the guesswork from fluid control design.
The Flow Coefficient (Cv) serves as the universal imperial standard. Engineers define Cv as the volume of water, measured in US gallons per minute (GPM), flowing through a fully open valve at 60°F with a pressure drop of exactly 1 psi. If a valve has a Cv of 100, it passes 100 GPM of water with a 1 psi pressure loss. The metric equivalent is Kv. We define Kv as the volume of water in cubic meters per hour passing through a restriction with a 1 bar pressure drop. They form the mathematical foundation of your selection process.
You cannot calculate a required coefficient without gathering precise system data. Relying on estimates will invalidate your results. You must pinpoint three core variables:
Maximum and normal volumetric flow rate (Q): Determine the absolute highest volume your system expects to handle, alongside standard operating volumes.
Specific gravity of the fluid (G): Water holds a specific gravity of 1.0. You must compare your media's density against water. A heavier fluid demands a higher flow coefficient.
Maximum allowable pressure drop ($\Delta$P): Identify the maximum pressure loss your process can tolerate across the valve without harming downstream equipment or pump efficiency.
For standard incompressible liquids, the universal sizing equation is:
Cv = Q * $\sqrt{G / \Delta P}$
You multiply your flow rate by the square root of the specific gravity divided by your allowable pressure drop. This calculation yields the exact minimum flow capacity your system requires to function correctly.
Calculators and software tools provide a strong theoretical baseline. However, real-world piping geometry drastically alters installed performance. Nearby reducers, expanding fittings, and tight elbows introduce turbulence. Fluid viscosity variations also skew theoretical outputs. Therefore, engineering standards require applying safety factors to the final specification to compensate for these installed realities.
Once you calculate your required Cv, you must match it against actual equipment designs. Different body styles offer drastically different flow characteristics, even when they share the same nominal pipe size.
Full port (or full bore) designs feature an internal ball diameter equal to the inner diameter of the connecting pipeline. They offer a Cv closely matching an equivalent length of straight pipe. You should use full port models when your process demands zero pressure drop, such as in pump suction lines or systems requiring mechanical pigging.
Standard port (or reduced bore) designs feature a smaller internal pathway. They naturally possess a lower Cv and introduce a noticeable pressure drop. However, they offer significant cost and weight savings. If your process calculations show ample allowable pressure drop, a standard port design provides an economical and highly effective solution.
Your calculated flow requirements influence your connection choices. System footprint, maintenance schedules, and media type dictate the final selection.
flange end ball valve: This style is best suited for larger industrial lines. High flow capacities demand robust, leak-resistant connections. Flanges handle severe piping stresses and allow technicians to remove the unit quickly during plant turnarounds without cutting pipes.

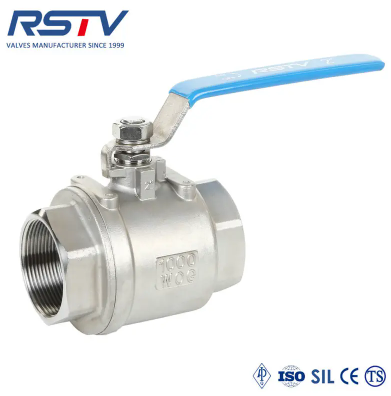

stainless steel threaded ball valve: This remains the standard for smaller-scale lines, typically under two inches in diameter. When handling corrosive media at lower required Cv ratings, threaded connections prioritize rapid installation and simplified maintenance.
stainless steel wafer ball valve: You should deploy this style in systems facing strict space and weight limitations. Wafer designs maintain necessary flow capacity while fitting securely between standard pipe flanges. They utilize a highly reduced face-to-face dimension, cutting down on overall assembly weight.
Typical Flow Characteristics by Valve Body Style
Design Type | Relative Flow Capacity (Cv) | Pressure Drop Profile | Primary Application Use Case |
|---|---|---|---|
Full Port | Maximum (Matches Pipe) | Negligible / Zero | Pigging lines, high-viscosity media |
Standard Port | Reduced (Approx. 60-70%) | Moderate | General utility, budget-conscious piping |
Wafer Type | Moderate to High | Low to Moderate | Compact skids, weight-restricted modules |
Calculations performed in a vacuum rarely survive contact with the real world. You must adjust your sizing strategy to account for dynamic physical changes happening inside the pipeline.
Liquid media can change phase unexpectedly. If the pressure drop across the internal restriction falls below the fluid’s vapor pressure, you experience flashing or cavitation. Flashing occurs when the fluid vaporizes and remains a gas downstream. Cavitation occurs when those vapor bubbles quickly revert to liquid state. Both phenomena severely restrict actual flow capacity. The fluid "chokes," meaning further pressure drops will not increase flow rate. If your initial calculations suggest a risk of choking, you must re-evaluate your sizing entirely. You may need to select specialized anti-cavitation internal trims or increase the valve size to lower fluid velocity.
You cannot use standard liquid sizing formulas for compressible fluids. Gases and steam require distinct equations based on ISA-75.01.01 standards. Compressible media changes density significantly as it moves across the restriction. You must incorporate absolute inlet pressure (P1), expansion factors, and absolute temperature into your math. Failing to account for compressibility often results in massively undersized equipment, leading to sonic velocities and deafening noise levels on the plant floor.
Highly viscous liquids, such as heavy fuel oils, polymers, or syrups, resist flow far more than water. Standard flow equations assume water-like behavior (turbulent flow). High viscosity shifts the fluid dynamics into a laminar flow regime. This resistance acts as an invisible barrier. You must utilize a viscosity correction factor based on the system's Reynolds number. This correction factor artificially increases your calculated required Cv, ensuring you select a larger bore capable of passing the sticky, thick media.
Translating your verified flow coefficient into a purchase order requires methodological discipline. You must protect your process from real-world variations by applying sensible logic.
Never select a component where the manufacturer's maximum rated flow exactly matches your required flow. Systems experience surges, pump variations, and natural wear. Once you calculate your theoretical required Cv, multiply it by a safety factor of 1.25 to 1.3. This establishes your target rating. It guarantees the equipment operates within a comfortable mid-range capacity, extending its mechanical lifespan while leaving room for process expansion.
Not all flow capacity charts hold equal merit. Before finalizing a specification, ensure the vendor’s published Cv or Kv tables stem from certified testing. Reputable manufacturers test their equipment according to standard ISA or IEC methodologies using dedicated flow loops. Avoid relying on theoretical geometric approximations provided by low-tier vendors. Inaccurate published data will immediately void your precise engineering calculations.
Follow a structured path to finalize your selection:
Calculate your exact system requirements using the appropriate formula for liquids, gases, or steam.
Apply your 1.25 to 1.3 safety margin to find the target flow coefficient.
Cross-reference this target against standardized manufacturer flow charts.
Verify the selected connection type directly aligns with your overarching piping standard (e.g., ASME, DIN).
Consult with a technical sales engineer for final validation, especially if handling complex, high-viscosity, or two-phase media.
Sizing a ball valve requires moving beyond pipe diameter to mathematically proving the valve can handle your specific flow rate, fluid gravity, and pressure constraints. Accurate sizing prevents dangerous bottlenecks and wasteful overspending. By systematically calculating an accurate Cv, you build a reliable foundation for your fluid network. Factoring in system realities like fluid viscosity, compressibility, and cavitation risks ensures long-term operational stability.
To finalize your procurement process, keep these next steps in mind:
Always calculate a baseline flow coefficient before opening a manufacturer's catalog.
Apply a strict 20% to 30% safety margin to accommodate unexpected process surges.
Align your flow data with the correct body style and connection type to match your maintenance capabilities.
Demand certified test data from vendors to validate their published flow capacities.
By applying these sensible engineering principles, you can confidently specify the exact configuration needed. You will effectively protect your infrastructure from premature failure and daily operational inefficiencies.
A: Cv is the imperial standard, measuring water flow in US gallons per minute with a 1 psi pressure drop at 60°F. Kv represents the metric standard, measuring cubic meters per hour with a 1 bar pressure drop. You can convert them easily using the formula: Cv = 1.156 × Kv.
A: No. A full port design features an internal bore diameter exactly equal to the inner diameter of the connecting pipe. It offers negligible flow restriction and generates a very high Cv. This makes it ideal for piping networks requiring zero pressure drop or mechanical pigging operations.
A: No. Gases and steam act as compressible fluids. Their density changes as they flow. Your calculations must account for absolute inlet pressure, absolute temperature, and complex compressibility factors. Basic liquid sizing equations omit these variables and will produce dangerously inaccurate sizing results.
A: Operating a valve continuously at 100% of its rated capacity leaves zero room for unexpected system surges or calculation variances. Selecting equipment with a rated capacity roughly 25% higher than your strict calculation ensures highly reliable performance and prevents premature wear under variable plant conditions.
