High-temperature processing environments remain highly unforgiving for fluid control systems. Specifying the wrong seat material for a Ball Valve leads to rapid deformation, catastrophic leakage, and unplanned downtime. You cannot afford arbitrary material choices when handling volatile or hazardous media. Ignoring these critical variables often results in systemic failures.
Standard resilient seats like pure PTFE lose mechanical integrity rapidly above 400°F (204°C). When you cross into severe service conditions, you face complex engineering challenges. You must carefully balance thermal limits against chemical compatibility. You also need to achieve strict leakage rate requirements.
This guide provides a purely technical, evidence-based framework for evaluating high-temperature seats. We explore how to mitigate severe thermal expansion risks across different process lines. You will learn to match advanced seating materials with proper valve body configurations. This ensures maximum operational reliability.
Threshold Awareness: Operating temperatures above 400°F require a transition from standard polymers to engineered thermoplastics (PEEK), carbon-graphite, or metal-to-metal seating.
Pressure-Temperature (P-T) Dependency: Temperature limits are not static; they degrade as line pressure increases. Always evaluate based on the valve's specific P-T curve.
Leakage Trade-offs: Upgrading to severe-service metal seats often requires accepting API 598 / ANSI FCI 70-2 Class V leakage standards rather than the bubble-tight Class VI shutoff typical of soft seats.
Actuation Impact: High-temperature seating materials create higher friction coefficients, necessitating precise torque calculations and oversized actuators.
Industrial flow control demands precise operational boundaries. You must define the exact point where standard sealing mechanisms fail. Industry consensus sets the traditional baseline limit around 400°F (204°C). Standard PTFE seats begin yielding well before this threshold. Process conditions exceeding 500°F (260°C) require entirely different valve architectures.
Operators frequently underestimate the physical changes occurring inside the valve body. Heat fundamentally alters material properties. We categorize these failures into three distinct mechanical breakdown mechanisms.
Cold Flow and Extrusion: Sustained heat aggressively softens polymer structures. When you apply high line pressure to a softened seat, the material physically extrudes. It moves out of its machined cavity. This ruins the seal entirely.
Thermal Binding: Materials expand at different rates. The volumetric expansion of a polymeric seat often outpaces the metal valve body. The seat swells inward. It eventually locks the ball in place. You lose actuation capability completely.
Chemical Acceleration: Heat acts as a catalyst. Media that seems benign at room temperature becomes highly corrosive at 500°F. This accelerated chemical attack degrades the seat matrix rapidly.
Engineers must replace failing polymers with advanced materials. We divide high-temperature solutions into three distinct categories. You must weigh the specific advantages and limitations of each.
You can evaluate PEEK and Devlon for these moderate-to-high temperature zones. They offer excellent mechanical rigidity.
Pros: They maintain tighter shutoff capabilities. You can often achieve Class VI bubble-tight seals. They also require much lower operating torque than metal.
Cons: They remain highly susceptible to thermal shock. Their rigid nature demands extremely careful machining tolerances. Sudden temperature spikes can fracture the seat.
Carbon-graphite steps in when thermoplastics reach their melting points. They bridge the gap between plastics and metals.
Pros: They deliver outstanding chemical resistance across a broad pH range. They also possess intrinsic self-lubricating properties. This helps keep breakaway torque manageable.
Cons: Carbon-graphite is inherently brittle. You cannot use it for highly abrasive media. Without structural metal reinforcement, particulates will erode the seat quickly.
Severe applications demand true metallurgical solutions. You should evaluate Stellite overlays and Tungsten or Chromium Carbide coatings.
Pros: They survive extreme heat effortlessly. They also handle abrasive particulates like catalysts and scale without degrading.
Cons: You will face significantly higher upfront costs. Operating torque increases massively. They require lapped ball-to-seat mating. These matched sets make field repairs difficult.
Material Category | Max Temp Threshold | Friction Level | Abrasion Resistance | Typical Leakage Class |
|---|---|---|---|---|
PTFE (Standard) | ~400°F (204°C) | Low | Poor | Class VI |
PEEK | ~500°F (260°C) | Moderate | Moderate | Class VI |
Carbon-Graphite | ~750°F (400°C) | Low-Moderate | Poor | Class IV / V |
Metal (Stellite/Carbide) | 1000°F+ (537°C+) | High | Excellent | Class V |
You cannot select seats based purely on maximum temperature ratings. Material survival depends on several concurrent factors. You must evaluate the system holistically.
Evaluating temperature in a vacuum poses severe safety risks. Temperature limits are never static. They degrade predictably as line pressure increases. A material rated for 500°F may easily survive that temperature at 50 PSI. However, it will likely rupture or extrude at 800 PSI.
You must map your exact process conditions onto the manufacturer's P-T curve. If your maximum operating parameters sit too close to the material's yield curve, you must upgrade.
Zero-leakage expectations rarely align with severe service reality. You must contrast these expectations against practical standards. Industry benchmarks like API 598 and ANSI FCI 70-2 dictate permissible leak rates.
Soft seats achieve Class VI (bubble-tight) shutoff. Metal seats typically only achieve Class IV or Class V. You must decide if absolute shutoff is strictly required. Often, a permissible, highly restricted leak rate remains perfectly acceptable for the process.
Seat hardness directly impacts your actuation hardware. Elevated temperatures increase metal-to-metal friction. This drastically raises the breakaway torque. The valve becomes much harder to turn.
You cannot use standard actuator sizing charts. You must apply significant safety factors. Engineers routinely add 30% to 50% extra torque capacity when sizing pneumatic or electric actuators. An undersized actuator will stall, leaving the valve dangerously stuck.
Extreme temperatures cause violent pipeline expansion. This implementation reality cannot be ignored. The expanding pipe transfers massive mechanical stress directly into the valve body. This stress can distort the internal cavity. Such distortion ruins the seat seal. Choosing the right connection style matters just as much as the seat itself.

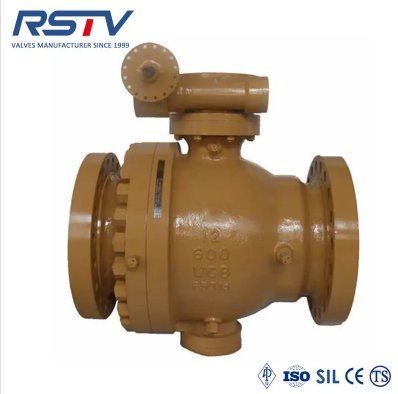

These configurations are best suited for severe high-temperature service. A flange end ball valve absorbs and distributes piping stress highly effectively. The flanged connection isolates the central valve body. It also allows for easier maintenance. You can unbolt the assembly quickly without cutting or welding active pipes.
Engineers typically use threaded connections in smaller bore utility lines. Steam tracing is a common application. However, a stainless steel threaded ball valve carries distinct risks at extreme heat. High temperatures destroy the protective oxide layer on stainless steel threads. This causes thread galling. The threads weld themselves together. We generally limit these configurations to applications under 2 inches and moderate high-temperature limits.
Wafer designs offer an incredibly compact footprint. This saves valuable space in dense piping runs. However, a stainless steel wafer ball valve introduces unique thermal challenges. You face the severe risk of uneven thermal expansion across long flange bolts. If the bolts expand unevenly, they compress the wafer body asymmetrically. This binds the seat. You must torque these bolts to exact engineering specifications to prevent lockup.
Theoretical selection requires practical execution. You must address installation and operational nuances. Failure to do so ruins even the best material choices.
Rapid temperature changes destroy rigid materials. We call this thermal shock. If you flood a cold valve with 800°F steam, brittle carbon seats will shatter. Metal carbide coatings may develop micro-cracks. You must implement strictly controlled system heat-up and cool-down procedures. Gradual ramping protects the seating integrity.
High temperatures do not just degrade seats. They also aggressively degrade stem packing. If you upgrade the seat but ignore the stem, you will leak volatile compounds into the atmosphere. You must ensure the selected valve incorporates live-loaded graphite packing. Belleville washers maintain constant pressure on the packing despite thermal cycling.
You need comprehensive data before requesting a technical quote. Gather the following parameters to ensure accurate vendor sizing:
Precise media composition and abrasive particulate content.
Maximum and minimum operational temperatures.
Maximum and minimum line pressures.
Required ANSI FCI 70-2 Leakage Class.
Available power supply for actuation needs.
Selecting a seat for high-temperature service requires careful balance. It remains a strict exercise in managing trade-offs. You must balance sealing capability against pressure limitations and operational torque.
Relying purely on standard P-T charts proves insufficient for critical applications. The entire assembly must function perfectly together. From the seat material to the specific connection type, you must evaluate the hardware as a holistic system.
Consult with specialized application engineers before finalizing designs. Provide them with specific process conditions, precise P-T data, and an accurate media profile. This ensures you accurately size the valve and the actuator. Getting these details right guarantees compliance and ensures long-term operational reliability.
A: Yes, but only for low-pressure standard steam. You must use specific reinforced polymers like Carbon-filled PTFE or PEEK. Superheated steam strictly requires metal seating to prevent material extrusion and rapid seal failure.
A: This is typically "thermal binding." It is caused by the ball expanding faster than the body. It also happens when the wrong seat material expands beyond its machined tolerances. This volumetric swelling physically locks the internal components.
A: Class VI represents "bubble tight" sealing, typical of soft seats. Class V allows a highly restricted, quantifiable amount of leakage, which is standard for metal-seated high-temperature valves. Evaluators must verify if process safety permits Class V leakage rates.
