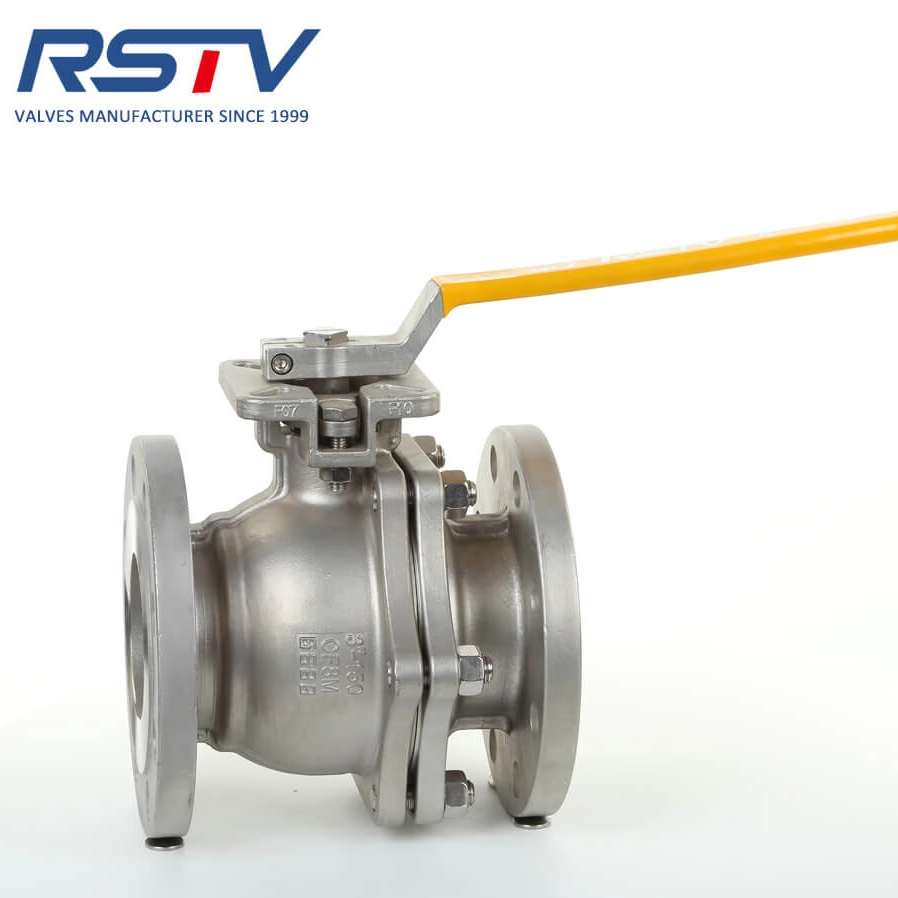

The API DIN JIS stainless steel two-piece flanged ball valve represents a pinnacle in fluid control engineering, meticulously designed to manage demanding pipeline operations across diverse industrial sectors. Forged from premium-grade stainless steel alloys including SS304, SS316, and CF8M, this valve delivers exceptional mechanical strength and unparalleled resistance to highly corrosive acidic and alkaline environments. The full port configuration ensures that the internal flow path matches the exact internal diameter of the connecting pipeline, virtually eliminating flow resistance and pressure drops across the system. Operators will immediately notice the substantial, heavy-duty feel and the dense, metallic resonance of the precision-cast body, a tactile indicator of the defect-free metallurgy achieved during the investment casting process. Whether deployed in petrochemical processing facilities, natural gas distribution networks, or intensive chemical manufacturing plants, this flanged valve provides absolute isolation and regulating capabilities. The metallic surface finish is machined to exact tolerances, ensuring a perfect, leak-proof seal at the flange connections while extending the operational lifespan of the entire piping infrastructure.
Body Material: Premium Stainless Steel (SS304 / SS316 / CF8M)
Connection Type: Flanged End (Raised Face / Flat Face)
Design & Manufacturing Standards: API, DIN, JIS, ANSI
Pressure Ratings: 150LB / PN64 / 1000WOG
Operational Temperature Range: -20℃ to 250℃
Applicable Media: Water, Oil, Natural Gas, Aggressive Chemical Fluids
Internal Structure: Two-Piece Body, Full Bore / Full Port Design
Quality Assurance: 100% Pressure & Seal Tested, ISO & CE Certified
Utilizing advanced investment casting techniques, the valve body is formed from superior stainless steel grades such as SS304, SS316, and CF8M. This specific metallurgical composition, particularly the inclusion of molybdenum in the CF8M variant, provides an extraordinary defense against aggressive media and localized pitting. When handling highly concentrated acids or alkaline solutions, the inherent passivated oxide layer of the stainless steel prevents surface degradation. Maintenance teams will appreciate the smooth, finely machined exterior that actively resists environmental weathering and industrial fallout, significantly extending the replacement cycle and minimizing unexpected downtime in critical processing sectors.
Pipeline integration requires absolute precision, and this two-piece ball valve is engineered to align perfectly with international flange dimensions. By strictly adhering to API, DIN, JIS, and ANSI specifications, the unit guarantees a flawless mating surface with existing infrastructure across diverse geographic regions. The heavy-duty flanged ends are meticulously faced to prevent gasket blowout, effortlessly managing fluctuating pressure ratings including 150LB, PN64, and 1000WOG. This exact dimensional accuracy eliminates the need for costly pipe modifications or custom adapters during installation, accelerating project timelines and reducing labor expenditures for engineering contractors.
Fluid dynamics are optimized through the true full port design, which maintains a consistent internal diameter from the inlet flange to the outlet flange. This unobstructed pathway prevents turbulence, reduces cavitation noise, and ensures maximum throughput for high-volume operations. Furthermore, operational safety is prioritized through a built-in anti-static device that continuously grounds the ball and stem to the valve body, eliminating the risk of static spark generation in volatile, flammable environments. The inclusion of a fire-safe structural design and a secure locking handle prevents unauthorized or accidental actuation, providing facility managers with profound peace of mind during high-pressure fluid transfers.
Reliability is never left to chance. Every single valve undergoes a rigorous 100% hydrostatic and pneumatic pressure testing protocol before leaving the manufacturing floor. These stringent internal quality control measures ensure absolute zero-leakage performance across the PTFE valve seats and the blowout-proof stem packing. Backed by internationally recognized ISO and CE certifications, the product stands as a verified, trusted component for critical infrastructure. Procurement specialists and project engineers can confidently specify these units knowing they meet the exacting safety, structural, and performance mandates required by global regulatory bodies.
Industrial environments frequently subject equipment to severe thermal and chemical stress. This flanged ball valve is constructed with advanced seating materials capable of maintaining an impenetrable seal across a drastic temperature spectrum, ranging from a freezing -20℃ up to a blistering 250℃. Whether the pipeline is transporting chilled liquid gases, boiling water, heavy crude oil, or abrasive chemical slurries, the internal components resist thermal expansion and contraction. The tactile operation of the lever remains incredibly smooth and consistent, requiring minimal torque even after prolonged exposure to these harsh, fluctuating operational conditions.
Sourced directly from a highly specialized manufacturing facility, this product line offers extensive OEM and ODM customization depth. Engineering teams can request specific alloy modifications, unique flange drillings, or specialized pneumatic/electric actuator mountings to suit proprietary system architectures perfectly. To ensure the absolute integrity of the precision-machined flange faces during global transit, all bulk orders are meticulously secured in heavy-duty, export-grade plywood cases, protecting against moisture ingress and mechanical impact. Coupled with streamlined production schedules, this direct-supply model guarantees rapid delivery windows, keeping large-scale industrial construction and facility maintenance projects strictly on schedule and within budget.
