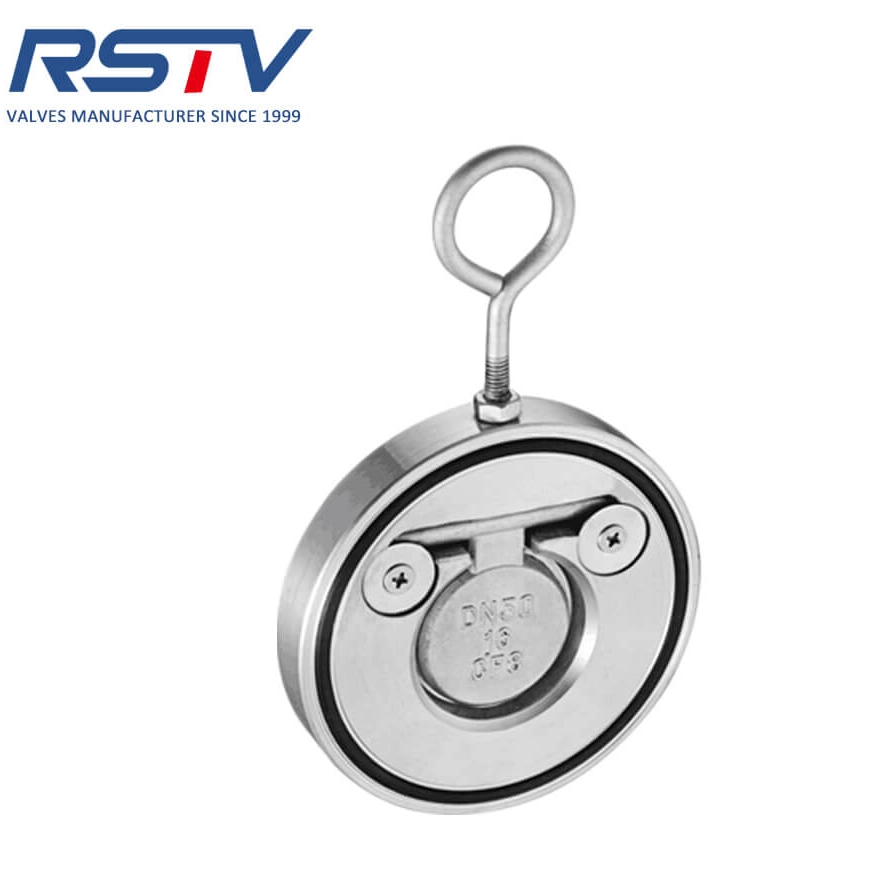

The H74 Stainless Steel Wafer Check Valve represents a highly efficient solution for unidirectional fluid control in complex piping networks. Engineered with an ultra-thin single-disc architecture, this component weighs approximately 80% to 90% less than conventional swing check valves. This dramatic reduction in mass directly translates to substantial savings in pipeline installation space and structural bracket expenditures. The optimized single-disc flow path, paired with a spring-assisted rapid return mechanism, effectively minimizes system pressure drops. When actuated, the valve delivers a zero-impact closure, completely mitigating the destructive forces of water hammer effects. The smooth, precision-machined exterior feels cool and substantial to the touch, reflecting the meticulous metallurgical processes used in its creation. During operation, the firm, decisive mechanical click of the disc seating against the seal provides auditory confirmation of a secure, leak-free barrier.
Valve Architecture: Ultra-thin single-disc wafer design (H74 Series)
Primary Construction Materials: Premium grade 304 and 316 stainless steel
Sealing Configurations: Soft seal, hard seal, and PTFE composite options available
Weight Characteristics: 80% to 90% lighter than standard swing check alternatives
Manufacturing Standards: Fully compliant with API 594 and ASME engineering guidelines
Testing Protocols: 100% subjected to rigorous pressure and helium leak testing prior to dispatch
Warranty Period: Comprehensive coverage extending from 18 to 24 months
The foundation of this valve lies in its exceptional metallurgical composition. Constructed from premium 304 or 316 stainless steel, the body offers extraordinary resistance to pitting, oxidation, and structural fatigue. This material density ensures that the valve remains rigid and unyielding even when subjected to extreme internal pressures and fluctuating thermal conditions. The raw, heavy metallic finish not only signifies durability but also provides a non-porous surface that resists the accumulation of industrial residues.
To accommodate a diverse array of aggressive media, the valve is equipped with versatile sealing options, including soft, hard, and PTFE composite configurations. The PTFE seals are specifically engineered to maintain a pristine, impenetrable barrier, preventing fugitive emissions even when handling highly corrosive chemical slurries. The tactile resilience of the composite materials ensures they conform perfectly to the disc edge, creating an absolute seal that withstands the degrading effects of high temperatures and harsh chemical solvents over countless operational cycles.
Industrial operators require fluid control mechanisms that can adapt to unforgiving environments. The H74 series is extensively utilized across multiple demanding sectors, effortlessly managing complex media such as heavy oil, abrasive slurries, and corrosive seawater.
Industry Sector | Typical Media Handled | Operational Advantage |
|---|---|---|
Oil and Gas Extraction | Heavy crude oil, refined hydrocarbons | Withstands intense line pressure and prevents hazardous backflow in critical transfer pipelines. |
Marine and Shipbuilding | Raw seawater, concentrated brine | The 316 stainless steel variant offers exceptional resistance to chloride-induced corrosion in saline atmospheres. |
Chemical Processing | Corrosive acids, industrial slurries | PTFE composite seals ensure absolute chemical inertness, preventing cross-contamination of sensitive media. |
Municipal Water Treatment | Potable water, raw wastewater | The zero-impact closure mechanism eliminates pipe shudder, protecting aging infrastructure from mechanical stress. |
The architectural philosophy behind this fluid control device prioritizes operational longevity and minimal mechanical intervention. By utilizing an integrated valve disc and a blow-out proof stem, the design inherently reduces the number of moving, wearable components. This structural simplicity translates directly to fewer points of potential failure within the pipeline system. Maintenance personnel will appreciate the straightforward configuration, which supports rapid, on-site seat replacements without the necessity for specialized extraction machinery or prolonged system shutdowns. Over years of continuous, demanding operation, this streamlined approach significantly diminishes operational downtime and curtails long-term upkeep expenditures. The internal mechanisms operate with a smooth, predictable consistency, ensuring that fluid control systems remain active, reliable, and entirely predictable even under the most strenuous industrial conditions.
Every unit produced undergoes a meticulous inspection process to guarantee absolute reliability in the field. Strictly adhering to API 594 and ASME engineering standards, the manufacturing facility maintains rigorous oversight over every casting and machining phase. Furthermore, the products carry esteemed international certifications, including ISO and CE/PED. Before any unit is approved for dispatch, it is subjected to 100% pressure and helium leak testing. This exhaustive diagnostic process ensures that even the most microscopic structural imperfections are identified and eliminated, guaranteeing a flawless component.
