Z15W
RST

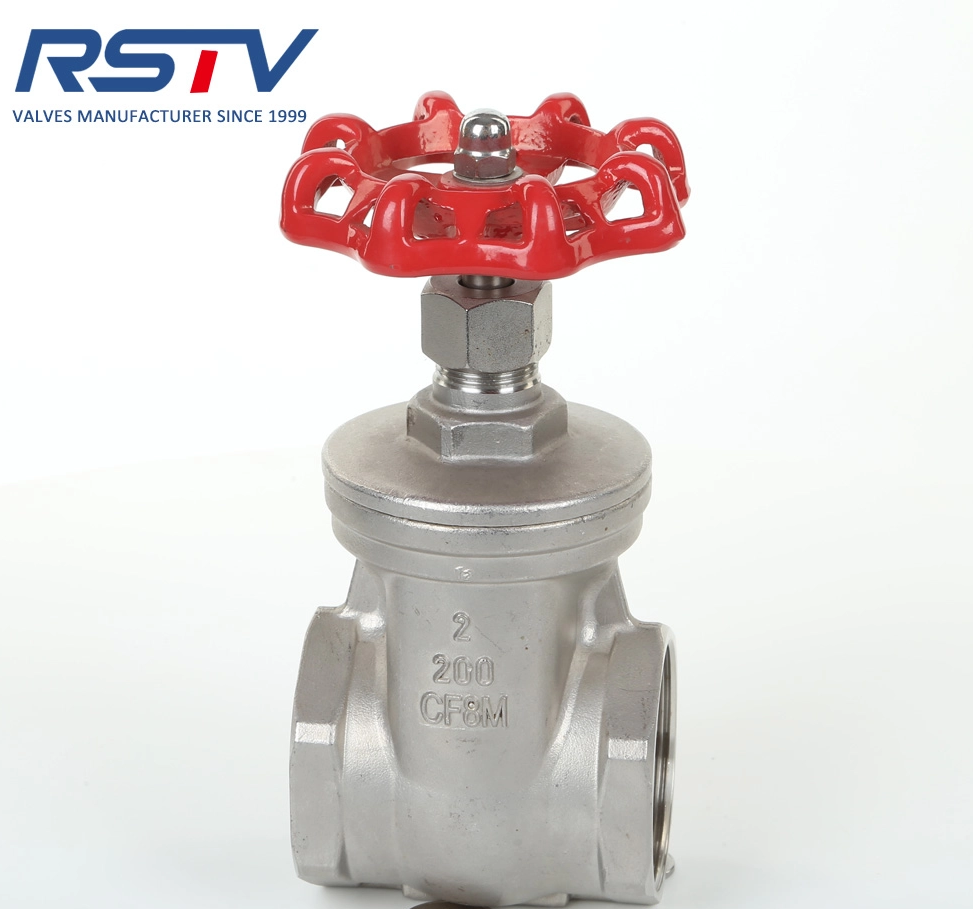

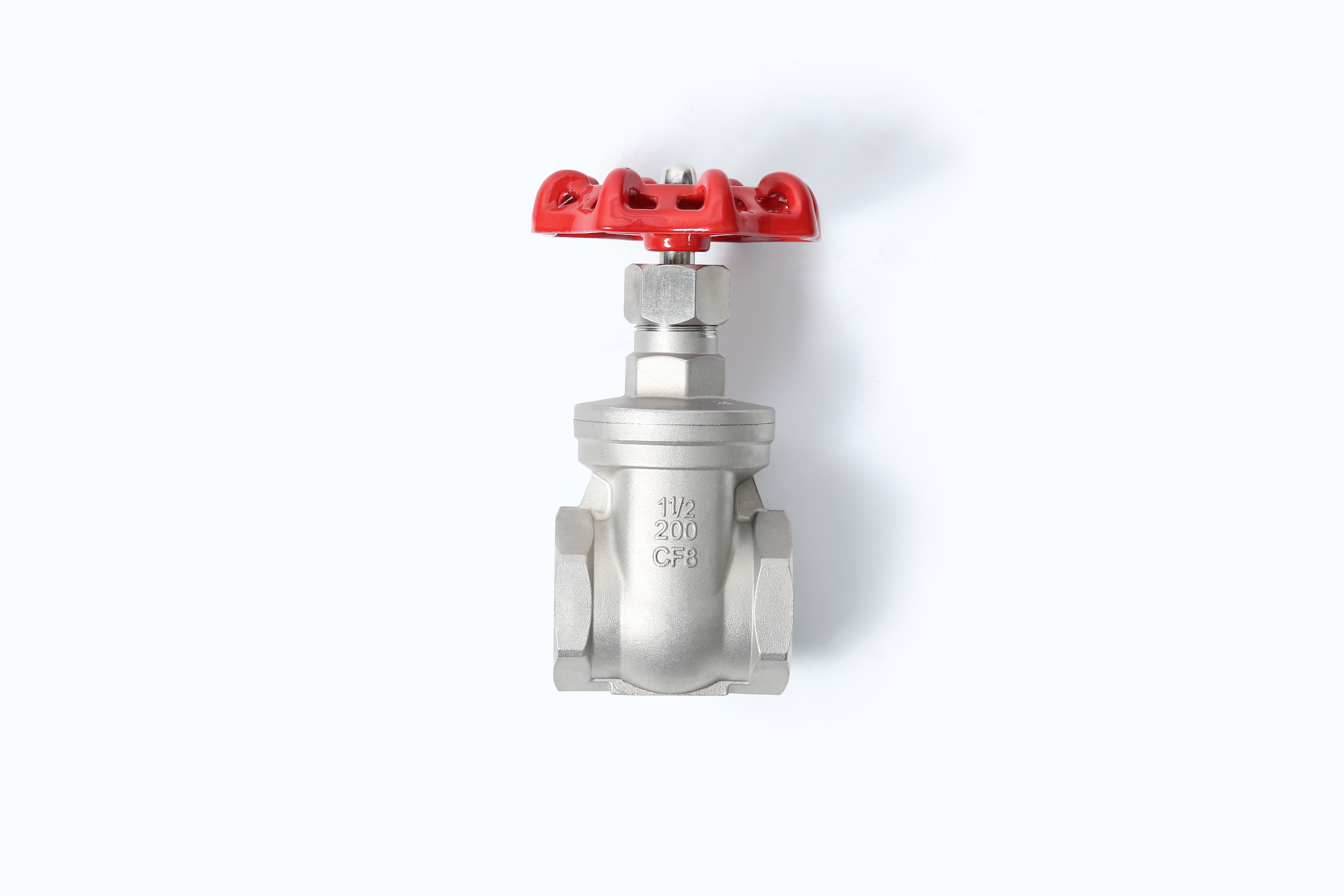

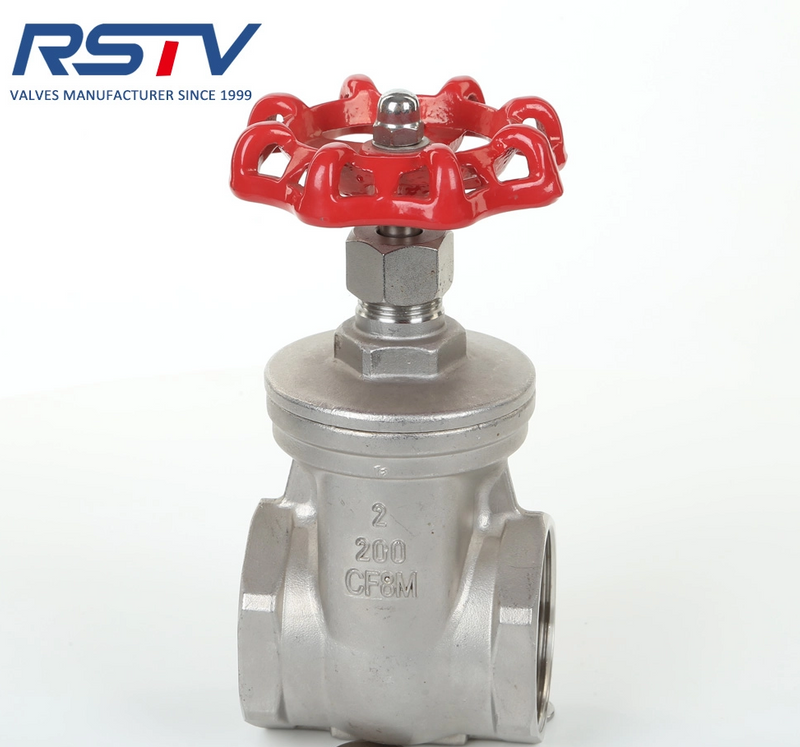

Threaded gate valves belong to the family of gate valves, which means they use a sliding gate or wedge to control the flow of fluids. The gate is positioned perpendicular to the flow direction and can be raised or lowered within the valve to open or close the passage.
The design of threaded gate valves promotes a straight-line flow path when the valve is fully open. This minimizes pressure drop and turbulence, making them suitable for applications where smooth flow and low resistance are critical.
Threaded gate valves are typically designed to allow bidirectional flow control, meaning they can manage the flow of fluids in both directions.
Features
--Construction – Non-Rising Type
--Material – A351 CF8M/CF8/CF3, A216 WCB,etc
--Size Range –1/2"-4" ( DN15-DN100)
--End Connection – Threaded ANSI B 1.20.1 (NPT) DIN 259/DIN 2999, ISO 228, BSP, PT
Socket Welding ASME B16.11
--Pressure Rating – 200WOG
--Temperature Rage – -20°C – 180°C
Material
| PART NO. | MATERIAL | |
| BODY | CF8M | CF8 |
| BONNET | CF8M | CF8 |
| DISC | CF8M | CF8 |
| STEM | 316 | 304 |
| GASKET | PTFE | PTFE |
Charateristics
Bi-Directional Flow Control: Threaded gate valves are typically designed to allow bidirectional flow control, meaning they can manage the flow of fluids in both directions.
Versatility: Threaded gate valves find application in a variety of industries, including water supply, HVAC systems, oil and gas, and general industrial processes.
Package &Delivery
Every item gets a standard packing quantity in a neutral packing. Customized personal specific printing packing is available.
In summary, our RST threaded gate valves are valuable components in fluid control systems, offering a simple and effective means of regulating the flow of liquids. Their threaded connections, ease of installation, and straight-line flow characteristics make them a practical choice for a variety of applications where reliable shut-off and flow control are essential.
