J41W-
RST
The valve is of the globe valve type, which is characterized by a spherical or globular-shaped body. This design allows for precise control of flow by moving a disc or plug into or away from the valve seat. Carbon steel is the primary material used for the body of the valve. Carbon steel is chosen for its strength, durability, and resistance to corrosion in various industrial applications. The valve features flanged ends, which means it has raised faces with bolt holes for easy and secure attachment to pipes or other components in a pipeline system. Flanges provide a convenient way to connect and disconnect valves for maintenance or replacement.
Features
-Outside Screw and Yoke (OS&Y) - Rising Stem Design
-Size Range: NPS 1/2"-24" (DN 15-600)
-Pressure Class: ASME Class 150/ Class 300/ Class 600
-Body Materials: Cast Steel, Cast Stainless Steel
-Temp.:-20-425°C
Material
| PARTS NO. | MATERIAL | ||
| BODY | WCB | CF8 | CF8M |
| BONNET | WCB | CF8 | CF8M |
| DISC | WCB+13CR/STL | 304/STL | 316/STL |
| STEM | 13CR | 304 | 316 |
| GASKET | SS304+GASKET | ||
Standards
-Design:ASME B16.34, BS1873,API623
-Flange Dimension: ASME B16.5
-Face to Face: ASME B16.10
- Inspection&Testing: API600/API598
Testing
Testing is a must before delivery.
Ensure the sealing function is what we should do.
Pressure Test
PMI Test
Dimension Check
.

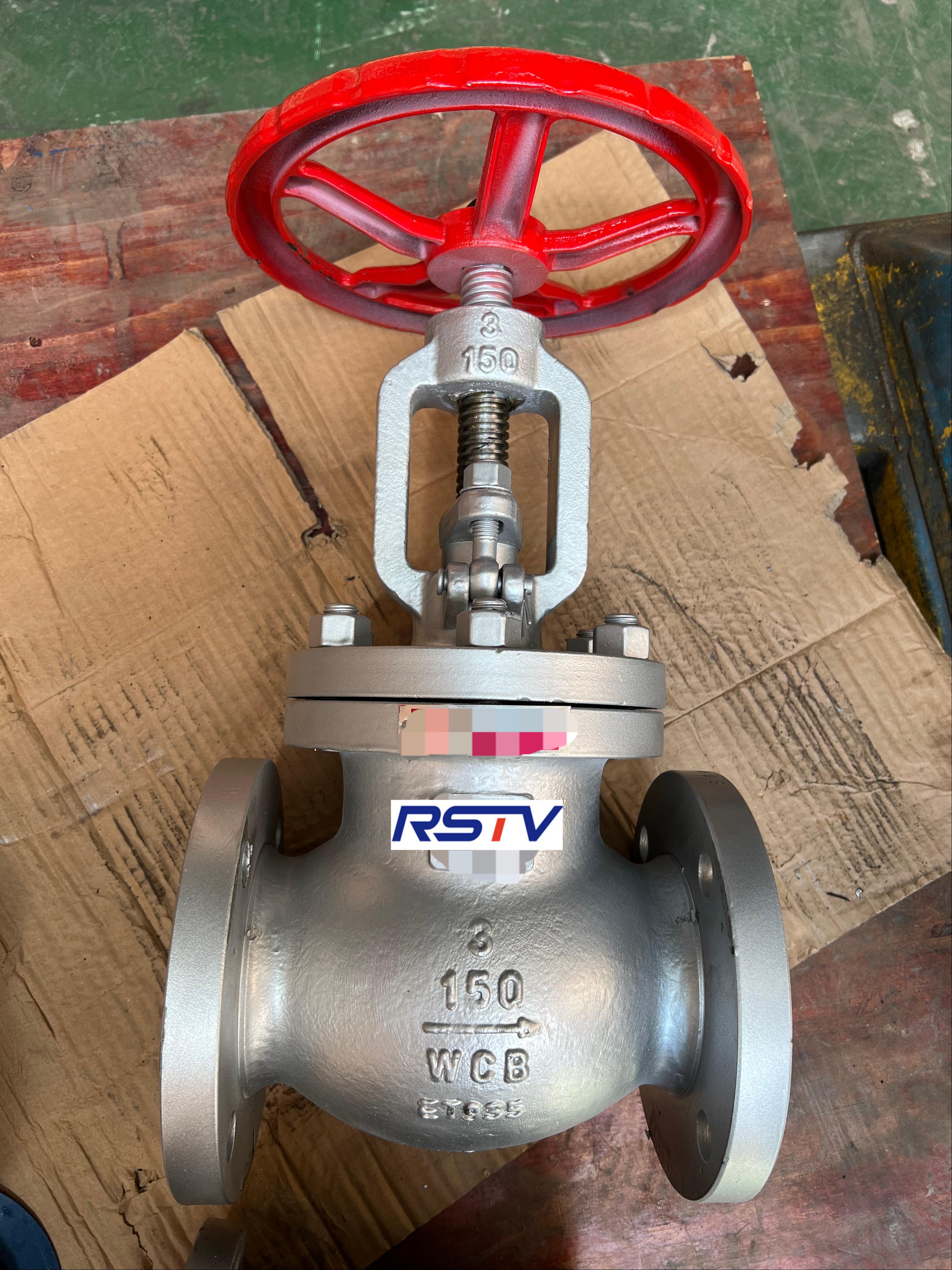

RST Cast Steel 150LB Flanged Globe Valves are commonly used in various industrial applications, including power plants, oil and gas, chemical processing, and water treatment plants, where precise flow control is essential.
Before selecting a carbon steel flanged globe valve, it's crucial to consider factors such as the application, fluid characteristics, pressure and temperature requirements, and any specific industry standards that may apply. Consulting with valve manufacturers or experts can help ensure the proper selection for your specific needs.
