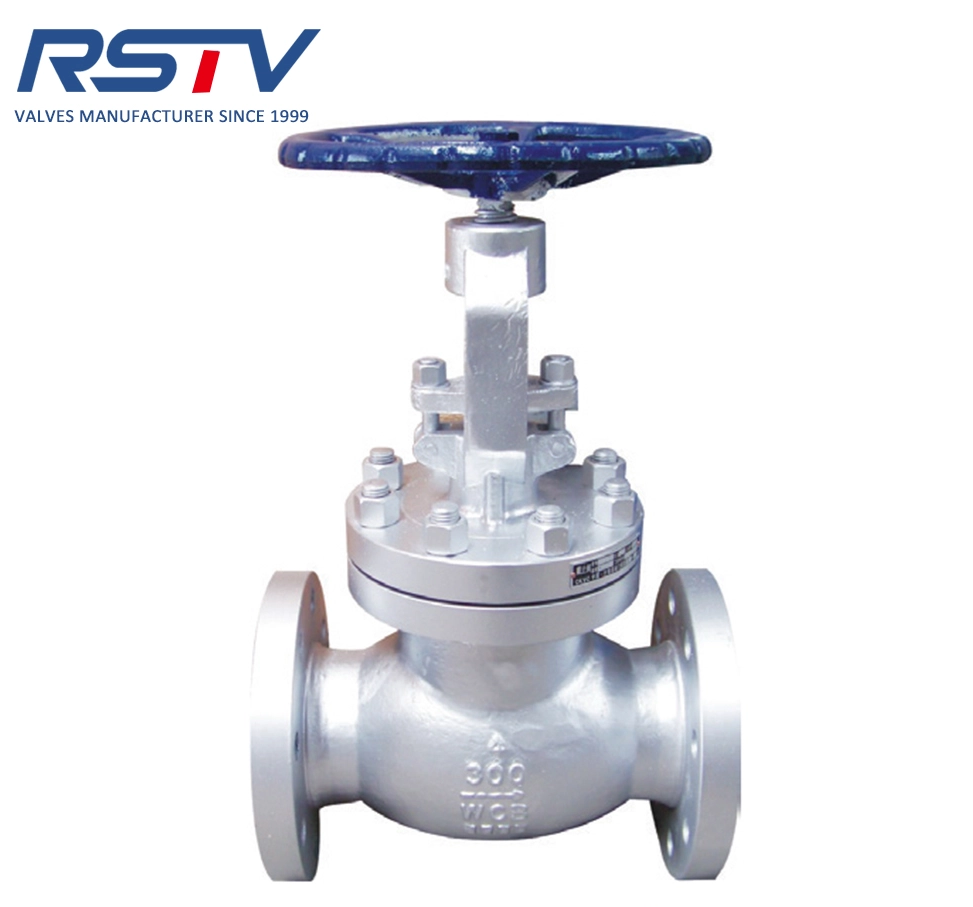

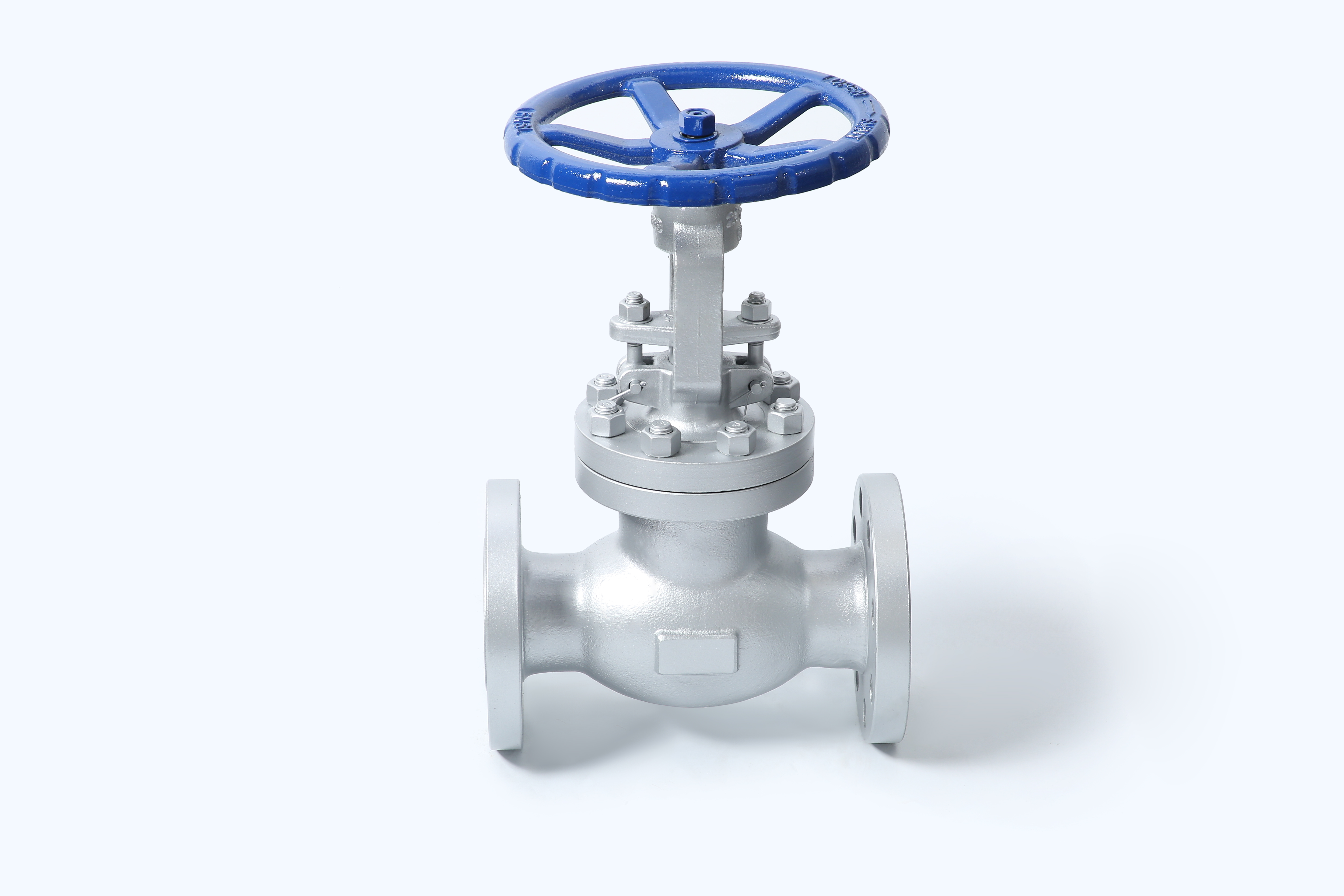

J41H
RST

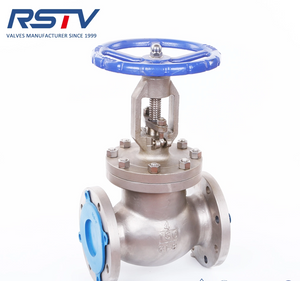

The globe valve design is known for its ability to provide good throttling capabilities and precise flow control. Stainless steel construction offers excellent corrosion resistance and durability, making it suitable for various industrial applications.
Features
-Outside Screw and Yoke (OS&Y) - Rising Stem Design
-Size Range: NPS 1/2"-24" (DN 15-600)
-Pressure Class: ASME Class 150/ Class 300/ Class 600
-Body Materials: Cast Steel, Cast Stainless Steel
CF8M/CF8/CF3M/LCB,ETC
-Temp.:-20-425°C
Material
| PARTS NO. | MATERIAL | ||
| BODY | WCB | CF8 | CF8M |
| BONNET | WCB | CF8 | CF8M |
| DISC | WCB+13CR/STL | 304/STL | 316/STL |
| STEM | 13CR | 304 | 316 |
| GASKET | SS304+GASKET | ||
Standards
-Design:ASME B16.34, BS1873,API623
-Flange Dimension: ASME B16.5
-Face to Face: ASME B16.10
- Inspection&Testing: API600/API598
Testing
Testing is a must before delivery.
Ensure the sealing function is what we should do.
Pressure Test
PMI Test
Dimension Check
.
· Precise Flow Control: Ideal for applications requiring accurate regulation of flow.
· Durability: Stainless steel construction ensures longevity and resistance to corrosion.
· Versatility: Suitable for a wide range of fluids, including water, steam, chemicals, and gases.
· Reliability: Robust design provides reliable operation and tight shutoff.
· Chemical processing
· Petrochemical and oil refineries
· Water and wastewater treatment
· Power plants
· Pharmaceutical industry
· Food and beverage industry
The valve is designed and manufactured in accordance with the specifications outlined by the American Petroleum Institute (API). These standards ensure that the valve meets rigorous quality and performance requirements, particularly for use in demanding environments like oil and gas extraction, refining, and petrochemical processing.
Overall, an API flange globe valve is a reliable and versatile solution for controlling flow in industrial pipelines, offering precise flow regulation and robust performance in demanding operating conditions.
