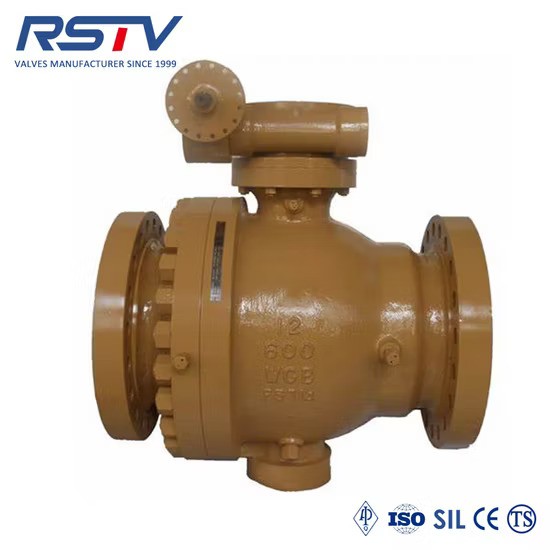

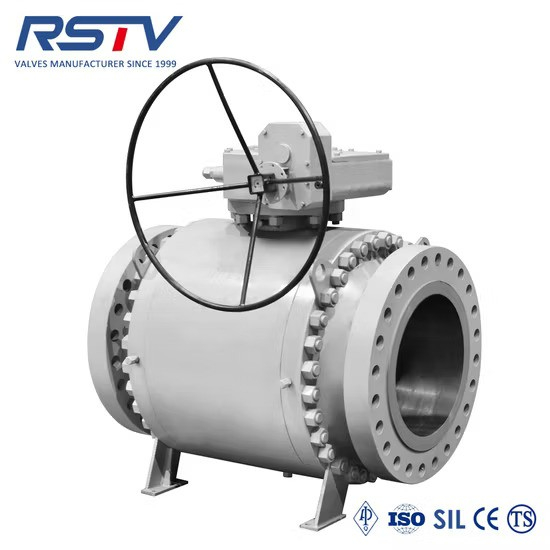

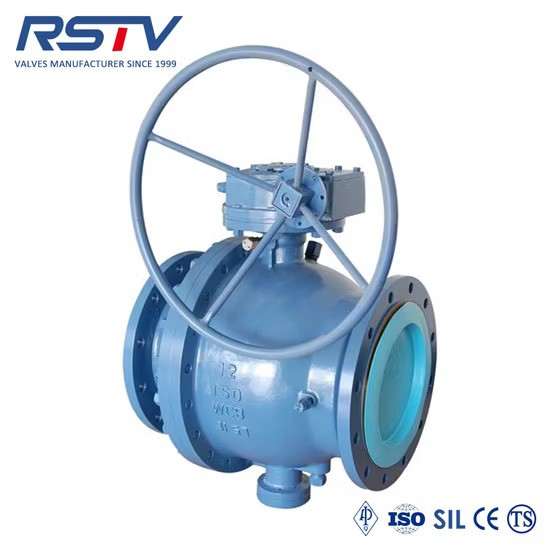

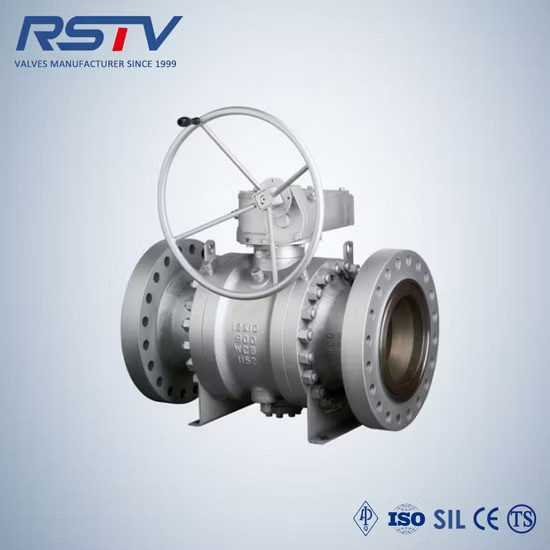

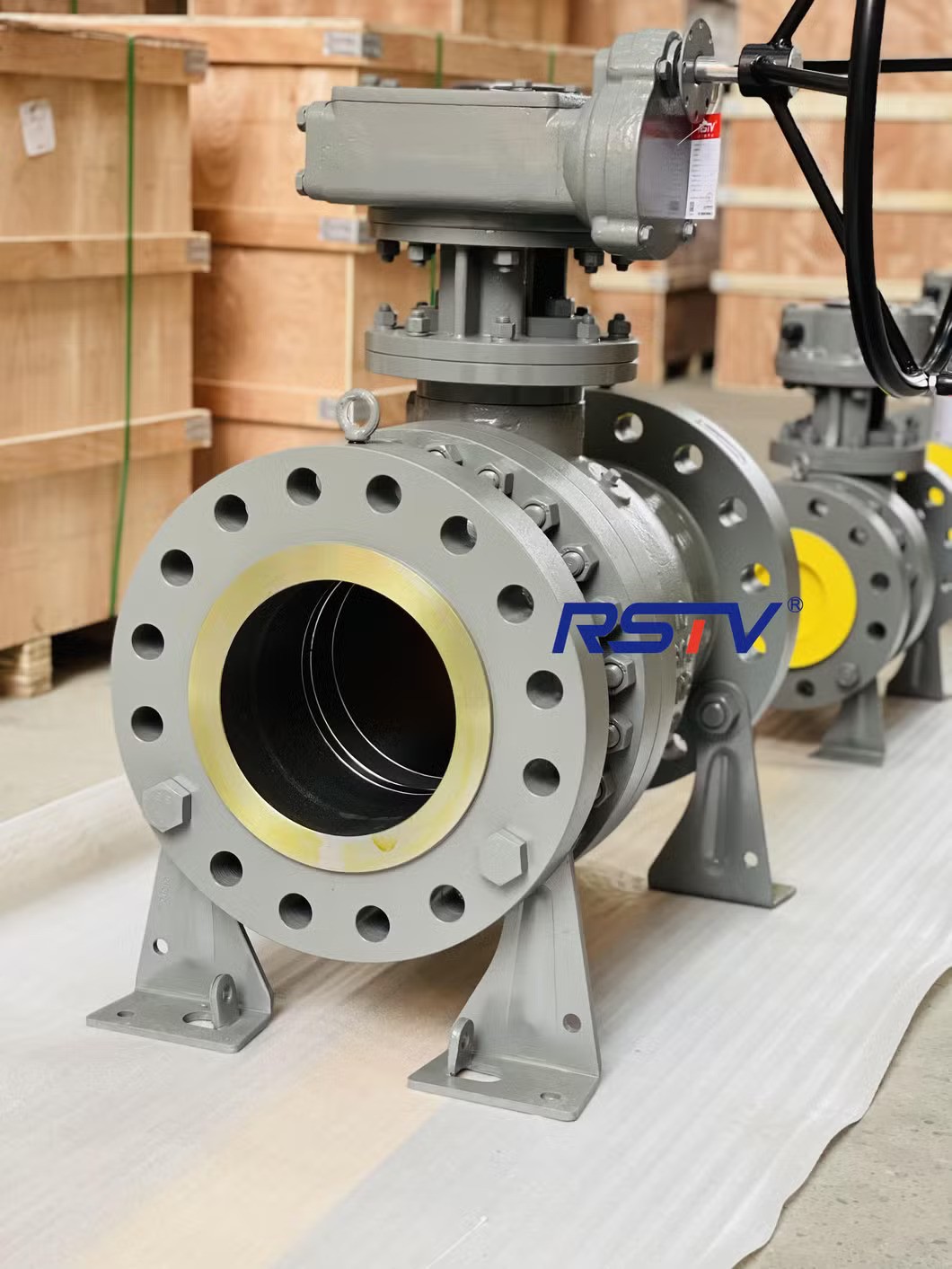

Cast Steel Trunnion Ball Valve

Cast Steel Trunnion Ball Valve Overview

A cast steel trunnion ball valve is a robust and reliable flow control device used in various industrial applications, such as oil and gas, chemical processing, power generation, and water distribution systems. Made from a durable metal alloy, these valves are designed to withstand high pressure and temperature conditions while providing smooth operation and precise control. The trunnion-mounted ball design enhances stability and eliminates the need for pilot holes, making it an ideal choice for high-pressure and high-flow applications. The cast steel construction of the valve ensures superior strength and durability, guaranteeing long-lasting performance even in the most demanding environments.

Product Parameters

Features of Cast Steel Trunnion Ball Valve

• Trunnion-Mounted Design:

• Ball supported at both ends, reducing wear and tear

• Ensures smooth, reliable operation throughout the valve's lifespan

• Minimizes stress on the valve components, enhancing durability

• High Pressure & Temperature Resistance:

• Designed to handle high-pressure, high-temperature, and corrosive fluids

• Ideal for demanding industrial applications and harsh environments

• Maintains structural integrity under extreme operating conditions

• Superior Sealing:

• Tight sealing mechanism prevents leaks and ensures system integrity

• Minimizes fluid loss and enhances overall system efficiency

• Reduces the risk of environmental contamination and safety hazards

• Durability:

• Cast steel construction provides excellent resistance to corrosion and abrasion

• Extends the lifespan of the valve, reducing replacement costs

• Withstands the rigors of industrial use without compromising performance

• Versatility:

• Suitable for a wide range of industrial applications

• Compatible with pipelines, oil rigs, chemical reactors, and more

• Adaptable to various fluid types and operating conditions

• Easy Maintenance:

• Simple design and accessible components facilitate quick maintenance and repairs

• Reduces downtime and minimizes associated costs

• Ensures the valve remains in optimal working condition with minimal effort

• Full Compliance:

• Meets ASME B16.34 and API 6D standards

• Complies with API 607 6th Edition Fire-Safe requirements

• All models are NACE MR0175 compliant, ensuring suitability for various applications

• Advanced Features:

• Submerged packing system and direct mount actuation for enhanced performance

• Standard ISO actuator mounting pads on all sizes for easy integration

• Second-generation PTFE seats provide higher operating temperatures

• Safety and Protection:

• Standard electrically grounded ball and stem for added safety

• Corrosion allowance in body thickness design for long-term reliability

• Chemical plating on carbon steel components to ASTM B733 and B656 standards

• Customization and Support:

• NACE standard compliance is available upon request

• OEM/ODM services and customization options to meet specific requirements

• Strong corrosion resistance, quality assurance, and environmental protection

Component Materials of Cast Steel Trunnion Ball Valve

Applications of  Cast Steel Trunnion Ball Valve

• HVAC Systems:

• Ideal for air handling units, boilers, and chillers

• Suitable for cooling towers, heat exchangers, and terminal units

• Approved by ISO 9001:2008 Management System Standard and CE

• Water Treatment:

• Specified for portable water and sewage water distribution

• Meets the highest industry standards for butterfly, gate, and check valves

• WRAS and NSF certification available for ball and knife gate valves

• Marine Applications:

• Proven track record with projects for COSCO and PETRO BRAS

• Committed to delivering value and client satisfaction

• Can supply valves certified by LR, DNV-GL, ABS, and more

• Oil & Gas Industry:

• Designed to handle high-pressure applications with safety and reliability

• Minimizes environmental impact through leakage control and testing

• Successfully implemented in projects for Petrobras and other industry leaders

• Chemical Processing:

• Withstands corrosive and abrasive environments in chemical plants

• Provides precise flow control and isolation in process lines

• Complies with industry-specific standards and regulations

• Power Generation:

• Suitable for steam, feedwater, and condensate systems in power plants

• Offers reliable performance in high-temperature and high-pressure conditions

• Contributes to efficient and safe power generation processes

• Mining Operations:

• Handles abrasive slurries and corrosive fluids in mining applications

• Provides durable and reliable performance in demanding environments

• Supports the smooth operation of mining equipment and processes

• Pulp and Paper Industry:

• Designed to handle corrosive chemicals and abrasive pulp slurries

• Ensures efficient flow control and isolation in pulp and paper mills

• Contributes to the production of high-quality paper products

• Food and Beverage Processing:

• Meets strict hygiene and sanitation requirements in food and beverage plants

• Provides reliable flow control and isolation in processing lines

• Complies with food-grade material standards and regulations

• Pharmaceutical Manufacturing:

• Designed to maintain sterility and prevent contamination in pharmaceutical processes

• Offers precise flow control and isolation in critical applications

• Meets stringent cleanability and documentation requirements for validation
