Flange leakage is never just a minor mechanical nuisance. It acts as a severe threat to your operational safety, environmental compliance, and overall process efficiency. High-pressure and critical fluid systems rely deeply on robust connections to function properly. A Flange End Ball Valve plays a central role in these demanding environments. Secure, leak-proof integration at these connection points remains absolutely non-negotiable for engineers and operators alike. This article provides a comprehensive, engineering-focused root cause analysis of common flange leaks. We break down the mechanical forces compromising your seals. You will learn how to properly diagnose these failure points in the field. Finally, we establish strict evaluation criteria to help you decide when to repair a leaking joint versus when to specify a completely new replacement valve.
Improper installation (uneven bolt torque) and thermal cycling are the leading operational causes of flange leaks.
Gasket degradation often masks deeper issues, such as piping misalignment or flange face corrosion.

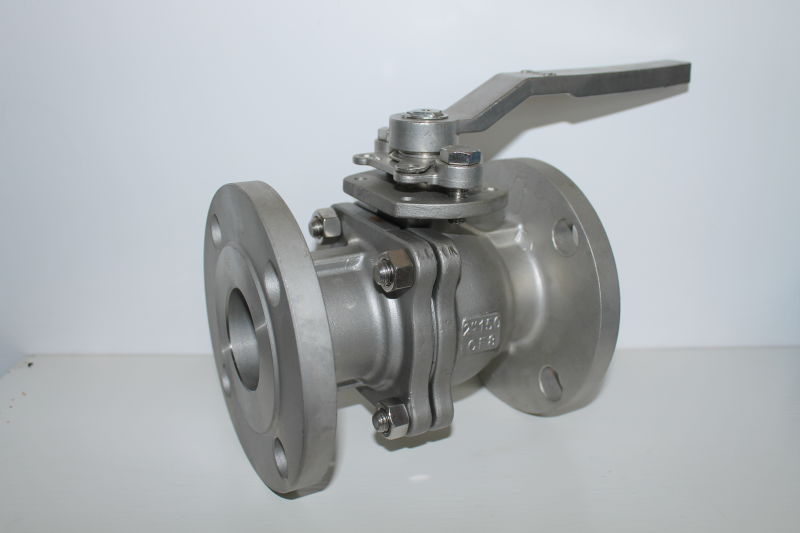

Selecting the right material, such as a stainless steel flange ball valve, is critical for mitigating aggressive media and preventing face pitting.
Long-term leak prevention requires evaluating replacement valves based on ASME standard compliance, face finish quality, and appropriate port sizing.
Ignoring minor drips or hisses at a flange connection guarantees future catastrophic failures. Plant operators often underestimate the compounding financial and operational impact of these leaks. We must look beyond the immediate cost of a replacement gasket.
Every time a flange connection fails, facilities face unplanned operational downtime. Isolating pipelines to replace compromised seals halts production lines immediately. Maintenance teams must drain systems, lock out energy sources, and perform time-consuming repairs. We can easily quantify these interruptions. Lost output hours drain corporate resources rapidly. A single day of unpredicted downtime often costs exponentially more than the highest-grade hardware.
Compliance and safety risks represent another massive hidden burden. Fugitive emissions pose serious hazards to site personnel and surrounding environments. Hazardous media escaping from a flanged industrial ball valve immediately triggers OSHA or EPA scrutiny. Toxic chemical leaks endanger worker health directly. Volatile fluid releases create severe fire risks. Regulatory bodies routinely issue hefty fines for unmitigated emissions.
System inefficiency also fundamentally disrupts process flow. Pressure drops occur naturally when fluid escapes the primary pipeline. Fluid loss demands harder work from system pumps to maintain required operational pressure. This artificial demand accelerates pump wear and consumes excess electrical energy. This inefficiency directly impacts the bottom line of the facility. Swapping a failing unit for a reliable replacement becomes a rapid-ROI decision. Stopping leaks recovers lost product and reduces energy consumption instantly.
Diagnosing a leak requires looking past the broken gasket. You must understand the specific mechanical forces causing the joint to fail. We categorise these failures into four distinct engineering root causes.
Flange sealing relies entirely on uniform gasket compression. Technicians create this compression by applying specific torque to the flange bolts. Uneven tightening creates a wedge effect between the flange faces. One side crushes the gasket while the opposite side barely makes contact.
Over-tightening causes severe mechanical issues as well. Applying too much force pushes bolts past their yield point. The metal stretches permanently and loses its clamping ability. Many field installations suffer from human error during this phase. Technicians frequently skip the required star-pattern torque sequence to save time. This shortcut leads to immediate micro-leaks upon system pressurisation. Delayed failures often manifest weeks later as the stretched bolts relax.
Flanges are not designed to support the structural weight of your piping system. External mechanical loads transfer severe stress directly to the valve flange. Unsupported pipe runs pull downward on the connection point. Thermal expansion of adjacent lines pushes laterally against the valve body.
This external stress forces the mating flanges out of parallel alignment. Angular misalignment creates a localized gap in the sealing surface. Parallel offset misalignment shears the gasket laterally. Either condition compromises the seal integrity completely. You cannot fix piping stress by simply tightening the flange bolts harder.
Industrial processes rarely operate at a constant, static temperature. Severe temperature fluctuations cause rapid thermal expansion and contraction. Metals and gasket materials react differently to these thermal shifts.
When hot media hits a cold valve, the inner components expand first. The bolts heat up and lengthen shortly after. When the system cools, components contract at varying rates. This continuous cycling physically works the connection loose over time. High heat also induces a phenomenon called creep relaxation. Gasket materials lose their elasticity under sustained high temperatures. The loss of elasticity eliminates the upward pressure required to maintain a tight seal.
The serrated finish of a flange face requires careful protection. This phonographic finish grips the gasket and prevents fluid bypass. Aggressive media routinely attacks standard carbon steel surfaces. Acidic or highly caustic fluids dissolve the metal, creating deep corrosion pits.
Improper handling during installation also causes severe damage. Dropping a wrench on the flange face creates deep scratches. These scratches provide a direct escape path for pressurised fluids. You must evaluate your media carefully. Corrosive environments demand a stainless steel flange ball valve to prevent face degradation. Stainless steel resists pitting and maintains its sealing geometry over decades of harsh service.
Maintenance teams must differentiate between a simple blown gasket and a fundamentally defective valve. Replacing a gasket on a warped flange guarantees a repeat failure. You must employ a strict diagnostic framework to find the true root cause.
Begin with thorough visual and acoustic inspections. Do not rely solely on seeing liquid drip. Use ultrasonic leak detectors to identify high-frequency gas escapes. Apply approved soap testing solutions to suspected joint perimeters. Bubbles will pinpoint the exact leak path instantly.
Next, perform a detailed gasket post-mortem upon removal. You can read a failed gasket like a map. Uneven crushing indicates severe piping misalignment or improper bolt sequencing. Chemical embrittlement suggests you selected the wrong gasket material for the fluid. A clean blowout often points to extreme pressure spikes exceeding the system rating.
Finally, you must evaluate the bare valve body. Clean the flange face thoroughly using a wire brush. Place a precision straight-edge across the face to check for plate warping. Inspect the surface for casting porosity or deep corrosion pitting. Verify whether the leak originates from the flange itself or from internal seat leakage bypassing outward.
Diagnostic Decision Matrix
Observed Condition | Probable Cause | Recommended Action |
|---|---|---|
Intact gasket, loose bolts | Thermal cycling or creep relaxation | Retorque bolts using proper sequence |
Uneven gasket compression | Piping misalignment or skipped star-pattern | Align piping, replace gasket, strictly torque |
Gasket chemically dissolved | Material incompatibility with media | Upgrade gasket material (e.g., PTFE to Graphite) |
Deep pitting on flange face | Media corrosion or improper metallurgy | Replace entire unit with suitable valve alloy |
Warped flange plates | Severe over-torquing or pipe stress | Replace valve and install pipe supports |
When diagnostics indicate valve failure, you must specify the replacement carefully. Swapping identical parts into a failing system yields identical failures. Engineers must evaluate replacements across three crucial design pillars.
Mismatched standards cause immediate installation disasters. You must emphasize strict alignment with ASME B16.5 standards. Verify your required pressure classes carefully. A Class 150 flange will not mate properly to a Class 300 pipeline.
Focus heavily on the specified face finish. Flange faces utilize specific phonographic grooves measured in Ra (Roughness Average) values. Different gasket types require different Ra finishes to seal properly. Spiral wound gaskets require a rougher finish to bite into the metal. Elastomeric gaskets need smoother surfaces to prevent shredding. Always specify the correct face finish for your intended gasket type.
Base your metallurgy evaluation purely on media corrosiveness and maximum operating temperature. Standard carbon steel works perfectly for benign fluids like water or oil. However, harsh chemicals destroy carbon steel rapidly.
You must upgrade materials when dealing with aggressive acids, high-chloride solutions, or caustic washes. Specifying a stainless steel flange ball valve provides superior longevity in these exact scenarios. The chromium oxide layer on stainless steel prevents corrosive pitting on the flange face. This material investment prevents recurring surface degradation and subsequent leak paths.
Internal valve geometry plays a massive role in external flange health. Standard port valves feature a reduced internal diameter compared to the piping. This restriction forces fluid through a smaller bottleneck.
Flow restriction causes severe downstream turbulence. This turbulent energy vibrates the entire piping system continuously. Chronic vibration loosens flange bolts prematurely and degrades the gasket seal. We highly recommend evaluating a full port flange ball valve for high-velocity applications. A full port design matches the internal pipeline diameter exactly. This geometry eliminates pressure drops entirely. It reduces system turbulence and minimizes destructive mechanical stress on your flanged connections.
Even the highest-quality valve will leak if installed poorly. Facility managers must establish strict Standard Operating Procedures (SOPs) for maintenance teams. Consistent execution eliminates the human error responsible for most joint failures.
Your baseline SOPs must cover extensive flange preparation. Technicians must clean mating faces down to bare metal using appropriate solvents. They must inspect the serrations visually for burrs or scratches. Any debris left on the face creates an instant leak channel.
Torque protocols require uncompromising discipline. Technicians must use calibrated torque wrenches exclusively. Impact guns destroy flange bolts and warp plates. You must lubricate all studs and nuts uniformly to ensure accurate torque readings. Follow a strict, multi-phase cross-pattern tightening sequence.
Phase One: Tighten all bolts in a star pattern to 30% of the final target torque.
Phase Two: Repeat the star pattern, bringing torque to 60% of the final target.
Phase Three: Repeat the star pattern, reaching 100% of the final target torque.
Phase Four: Perform one final circular pass at 100% to catch any relaxed bolts.
Finally, advise your procurement team to shortlist vendors rigorously. Evaluate valve suppliers based on their material traceability. Request Mill Test Reports (MTRs) for every unit. Ensure the supplier follows API 598 testing procedures for shell and seat leakage. Reliable engineering support from your vendor prevents specification errors early in the purchasing cycle.
Flange leakage rarely happens by accident. It is almost always a clear symptom of mechanical stress, thermal incompatibility, or improper material selection. Understanding these root causes empowers operators to move past temporary fixes. Replacing broken gaskets on damaged flange faces only guarantees future downtime.
We urge you to stop patching failing infrastructure blindly. Take proactive steps today. Audit your most problematic fluid lines for pipe stress and misalignment. Review your current torque procedures with your maintenance staff. You should consult directly with a valve engineer to specify the correct flange end ball valve for your exact chemical application.
Do not wait for a minor drip to become a major regulatory violation. Request a technical consultation from an expert manufacturer. Download comprehensive sizing guides to verify your port geometry. View extensive product catalogs to explore robust, stainless steel replacement options tailored to your facility.
A: Tightening bolts can temporarily fix leaks caused by thermal relaxation, but you must proceed cautiously. Over-torquing is extremely dangerous. It crushes the gasket beyond recovery and pushes bolts past their yield point. Stretched bolts lose their clamping force entirely. Always use a calibrated wrench and never exceed the manufacturer's specified maximum torque. If the joint still leaks at maximum torque, you must replace the gasket or valve.
A: A standard port valve restricts flow because its internal bore is smaller than the pipe. This restriction creates heavy turbulence and system vibration. Chronic vibration loosens flange bolts over time. A full port valve features an internal diameter matching the pipeline perfectly. This design eliminates flow resistance, stops turbulence, and drastically reduces mechanical stress on the flanged connection.
A: Your choice depends entirely on system pressure and temperature. Use Raised Face (RF) flanges for standard applications up to ASME Class 600. RF flanges use flat or spiral-wound gaskets and handle most general industrial media perfectly. Choose Ring Type Joint (RTJ) flanges for high-pressure and high-temperature environments (Class 900 and above). RTJ systems use a solid metal ring seated in a deep groove for maximum seal integrity.
