High-pressure pipelines leave zero margin for seat deformation, fugitive emissions, or torque-induced actuation failure. Catastrophic leaks bring industrial operations to an immediate halt. They also create severe safety hazards for site personnel. For large-bore or high-pressure applications, the mechanical limitations of floating ball valves force a necessary transition to trunnion-mounted designs. Trunnion systems securely anchor the internal ball mechanism. They seamlessly withstand extreme fluid forces.
Selecting the right valve requires moving beyond basic pressure ratings. You must carefully evaluate seat isolation mechanisms and maintenance accessibility. Strict adherence to API standards remains equally crucial. This guide provides a vendor-neutral framework for specifying valves. You will learn how to ensure pipeline integrity and predictable lifecycle performance.
Threshold for Transition: Trunnion designs become mechanically necessary over 2 inches at Class 600+ or any size above Class 900 due to torque and seat load limits.
Operational Dynamics: The anchored ball design absorbs line pressure, significantly reducing operating torque and allowing for smaller, more cost-effective actuators.
Compliance is Non-Negotiable: True pipeline reliability demands a certified API 6D trunnion valve with verified Double Block and Bleed (DBB) or Double Isolation and Bleed (DIB) capabilities.
Maintenance Dictates Structure: Choosing between top-entry, side-entry, and fully welded bodies must be driven by your facility's inline maintenance capabilities and fugitive emission limits.
Relying on floating ball valves in large-scale or high-stress environments leads to premature seat wear. Actuators also fail faster under these conditions. A floating valve uses line pressure to push the ball directly into the downstream seat. High fluid pressure effectively crushes the soft seat material over time. The friction becomes immense. Your actuator must then work much harder to rotate a jammed ball.

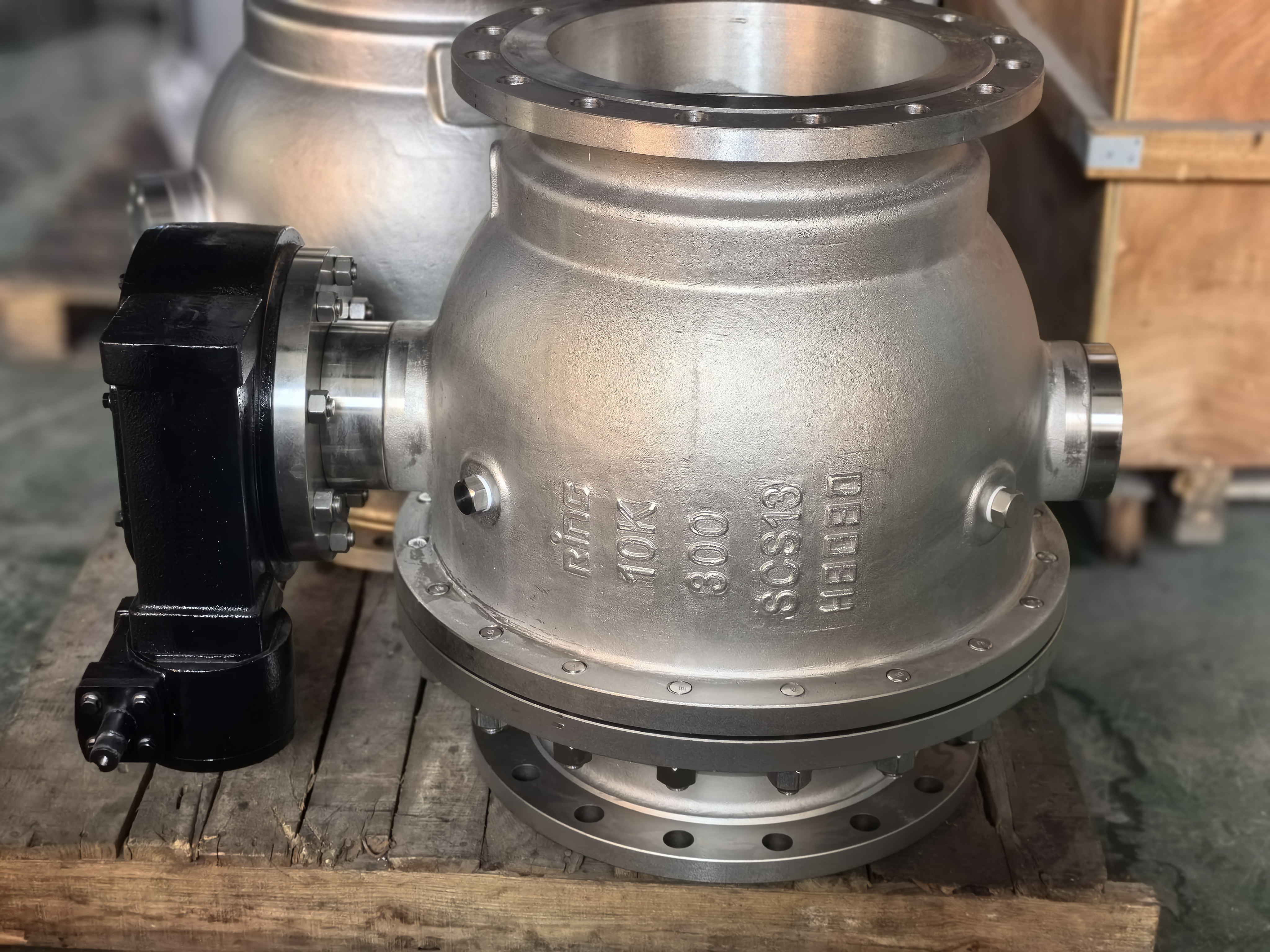

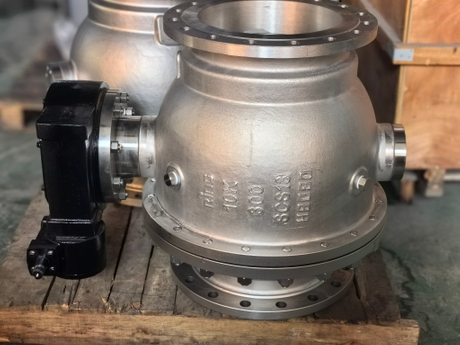

Anchoring the ball creates a massive mechanical difference. A trunnion ball valve secures the ball at both the top stem and the bottom trunnion shaft. This design shifts the heavy pressure load away from the downstream seat. The solid valve body absorbs the force instead. Spring-loaded seats then gently push against the anchored ball to create a reliable seal.
You should specify a trunnion design based on strict size and pressure rules. Industry standards make them mandatory for large bore applications exceeding four inches. You must also use them for any system rated Class 300 and above.
Actuation economics heavily favor the trunnion design. Lower operating torque requirements drastically reduce your capital expenditure. You can install smaller, less expensive pneumatic or electric actuators. Furthermore, trunnion mechanisms deliver superior flow control stability. They perform exceptionally well in systems requiring frequent cycling. They handle multiphase fluids without excessive vibration.
Evaluating seat design and sealing mechanisms determines your system safety. You must decide between Double Block and Bleed (DBB) or Double Isolation and Bleed (DIB) configurations. DBB provides standard isolation by bleeding the central cavity between two seats. DIB-1 and DIB-2 designs offer critical bidirectional sealing. They provide an extra layer of mechanical safety for severe service lines.
Self-relieving seats are absolutely essential. Thermal expansion in high-pressure liquids causes rapid cavity overpressure. Trapped fluid heats up and expands. The seats must automatically flex to vent this dangerous pressure back into the pipeline. Without self-relieving seats, the valve body could catastrophically rupture.
You must carefully evaluate seating materials when specifying a high pressure ball valve. Soft seats like PEEK or Devlon work beautifully for standard gas and oil applications. However, severe service conditions demand metal-to-metal seating. Abrasive fluids or extreme temperatures will quickly destroy soft polymers. You should specify Tungsten Carbide coatings for these harsh environments.
Seating Material Type | Primary Media Application | Temperature Limit | Key Advantage |
|---|---|---|---|
PTFE / RPTFE | Clean water, low-pressure gas | Up to 200°C | Excellent chemical resistance, low cost. |
PEEK / Devlon | High-pressure oil and gas | Up to 260°C | High mechanical strength under heavy pressure. |
Tungsten Carbide (Metal) | Abrasive slurries, extreme heat | Above 400°C | Maximum wear resistance and longevity. |
Operating torque directly dictates your actuator sizing. Do not simply match the actuator to the basic running torque. You must calculate strict safety factors for breakaway torque. Breakaway torque spikes when a valve sits closed for long periods. Undersizing your actuators poses a massive safety risk during Emergency Shutdown (ESD) scenarios. Always apply a 25% to 50% safety margin when sizing ESD actuators.

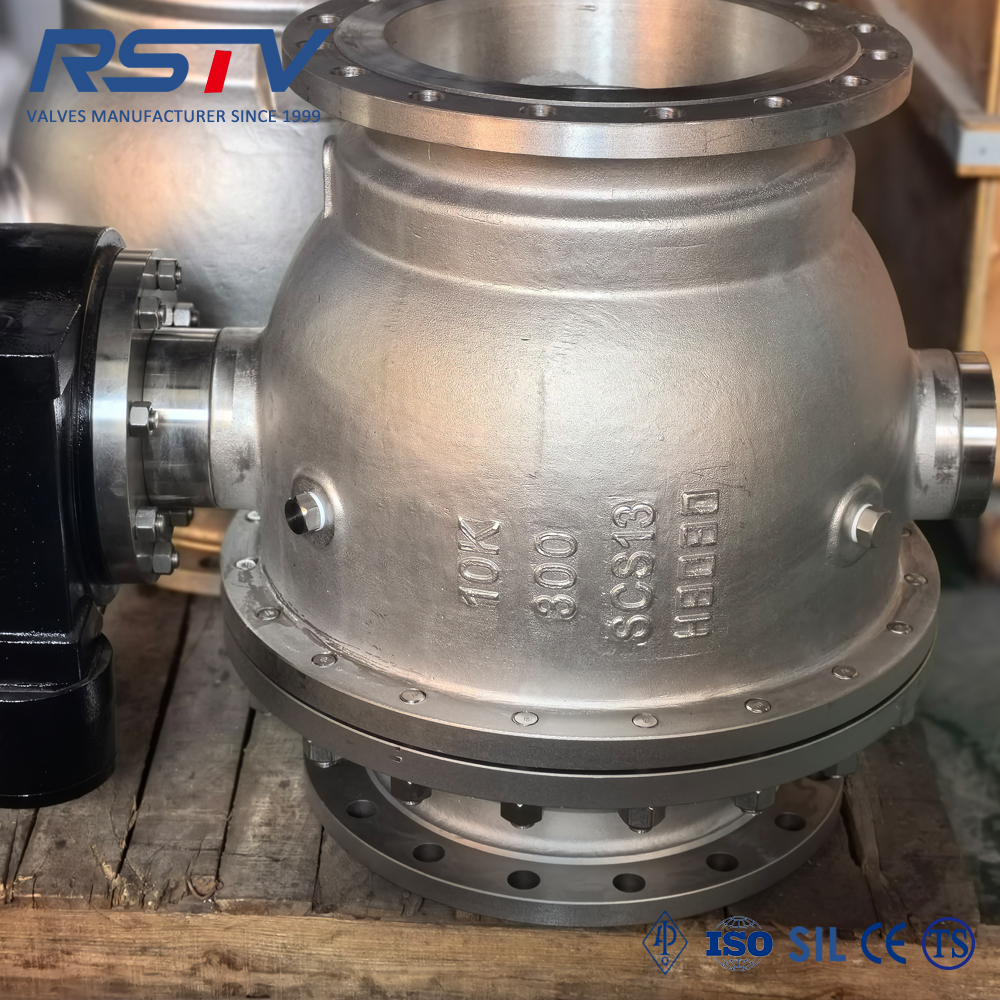

API 6D serves as the definitive standard for global pipeline valves. It dictates stringent hydrostatic and pneumatic testing requirements. Manufacturers must prove their designs can withstand immense pressure without leaking. A certified API 6D trunnion valve guarantees structural integrity for petroleum and natural gas sectors.
Material selection defines how well the equipment survives harsh environments. You must match the Bill of Materials (BOM) to your specific fluid chemistry and ambient conditions. We recommend reviewing these common material choices:
Standard Carbon Steel (A105/WCB): Best for standard non-corrosive environments and typical ambient temperatures.
Low-Temp Carbon Steel (LF2/LCC): Required for arctic environments or sudden pressure drops causing rapid cooling.
Duplex Stainless Steel: Necessary for highly corrosive offshore environments facing constant salt spray.
Trim and stem sizing also require careful engineering. Sour gas applications contain lethal Hydrogen Sulfide (H2S). You must enforce strict NACE MR0175 compliance for these environments. NACE standards dictate maximum hardness levels for metallic components. This prevents catastrophic sulfide stress cracking.
Prioritize forged components over cast alternatives for high-pressure systems. Cast bodies frequently harbor internal micro-porosities. These tiny voids compromise structural integrity under extreme stress. Forged steel eliminates porosity risks completely. It provides a denser, stronger, and more uniform grain structure.
Engineers design a pipeline trunnion valve in three primary structural configurations. Your choice directly impacts installation time, maintenance accessibility, and emission control.
The side-entry design typically features a 2-piece or 3-piece bolted body. Most industrial facilities use this standard configuration.
Pros: Highly cost-effective and easier to manufacture. You benefit from standard delivery times and widespread parts availability.
Cons: The bolted joints introduce more potential leak paths. Major maintenance requires completely removing the heavy unit from your pipeline.
Top-entry designs cater specifically to critical infrastructure constraints.
Pros: They allow for complete inline maintenance. Technicians can open the top cover and repair the seats or trim directly. You never remove the main body from the pipe.
Best for: Environments where pipeline shutdown and pipe cutting are economically prohibitive. They save massive amounts of downtime in tight spaces.
Fully welded body designs prioritize ultimate emission containment.
Pros: The manufacturing process eliminates all body flanges and bolted joints. You achieve absolute zero fugitive emissions from the body shell.
Best for: Buried underground pipelines, deep subsea applications, and long-distance natural gas transmission networks.
Weight calculations and piping support engineering present major implementation risks. Trunnion models are significantly heavier than their floating counterparts. The massive forged bodies and complex internal components add immense bulk. Failure to engineer adequate pipe supports causes severe issues. The dead weight pulls down on the pipe. This tension leads to flange stress, misalignment, and eventual leakage.
Fugitive emissions require aggressive management. Standard gland packing often degrades under constant operational cycling. You must evaluate and specify live-loaded stem packing systems. Live loading uses Belleville springs to maintain constant pressure on the packing rings. This compensates for normal wear and thermal cycling. It helps you meet stringent ISO 15848-1 environmental standards.
Procurement logistics frequently derail project schedules. You must recognize the lengthy manufacturing processes involved. Ordering custom bore sizes or specialized metallurgy takes time. Mandating third-party API 6D witness testing further extends the timeline. These customized requirements can easily push procurement timelines out by 12 to 24 weeks. Plan your sourcing strategy well in advance.
You must demand rigorous documentation during vendor selection. Never accept any product without comprehensive Material Test Reports (MTRs). Specify EN 10204 3.1 or 3.2 certifications. These documents prove the exact chemical composition of the steel. You must also request formal Factory Acceptance Test (FAT) records. FAT records verify the unit passed all hydrostatic and pneumatic pressure trials before shipping.
Traceability guarantees you receive authentic, tested equipment. Always verify the vendor holds a current API 6D monogram license. Check the official API database online. Ensure the license actively applies to the specific manufacturing facility building your order. Many brands use multiple global factories, but only some hold active certifications.
Standardizing your technical requirements simplifies the procurement phase. Develop a comprehensive datasheet before requesting quotes. Include exact flow media descriptions and maximum design pressures. List your absolute maximum and minimum temperature parameters. Specify the required actuation fail-state (fail-open or fail-close). Clearly define your end-connection specs (RF, RTJ, or Butt-Weld). A precise datasheet prevents costly vendor misinterpretations.
Specifying a trunnion mounted ball valve is fundamentally an exercise in risk mitigation. The upfront premium over floating designs is immediately offset by superior mechanical stability. You gain predictable actuation, extended seat longevity, and enhanced pipeline safety.
Always align your chosen structural configuration with your facility maintenance philosophy. Choose top-entry for tight spaces and welded bodies for buried lines. Strictly enforce API 6D testing standards during your procurement cycle to guarantee performance.
Consult with a specialized valve engineer before finalizing your purchase. They will review your pipeline pressure-temperature (P-T) ratings carefully. Expert guidance ensures you finalize the safest material selection for your specific operating environment.
A: These heavy-duty valves commonly handle ratings up to ASME Class 2500, which equals approximately 6000+ psi. However, specific pressure limits depend heavily on your chosen body material, wall thickness, and internal seat selection.
A: No, manufacturers design them strictly for on/off isolation. Throttling creates high-velocity fluid flow across partially open components. This intense velocity rapidly degrades the soft seats and causes severe internal damage, leading to permanent leakages.
A: A floating valve relies entirely on line pressure to push the internal ball into the downstream seat to seal. A trunnion valve anchors the ball mechanically at the top and bottom. It uses spring-loaded seats that push directly against the stationary ball, significantly reducing torque and wear.
A: API 6D certification guarantees the equipment has undergone rigorous design verification and extreme pressure testing. It ensures strict quality control specifically tailored for petroleum and natural gas operations, providing maximum environmental safety and operational reliability.
